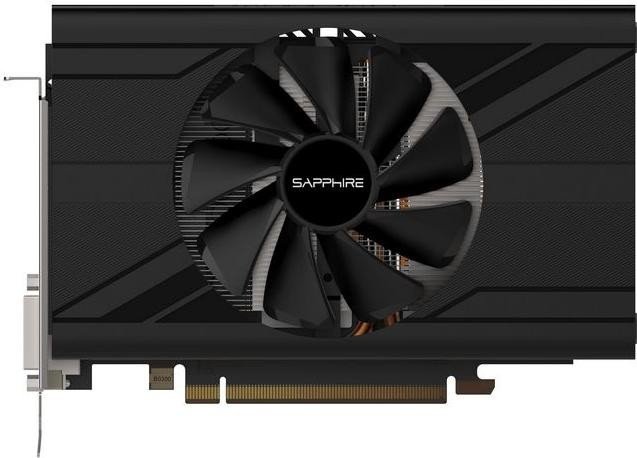

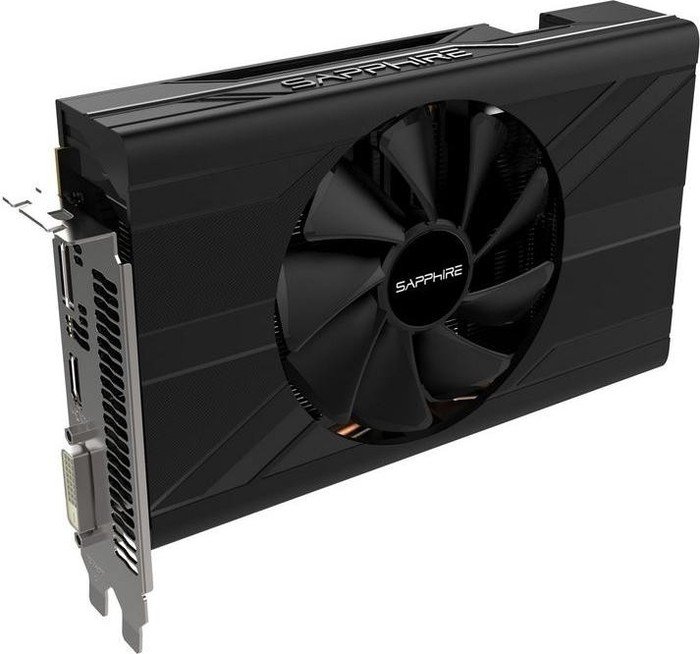

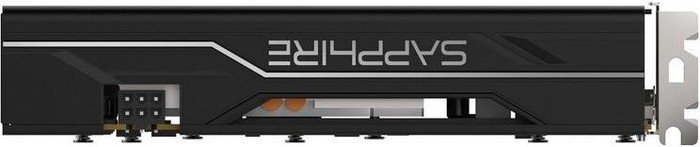

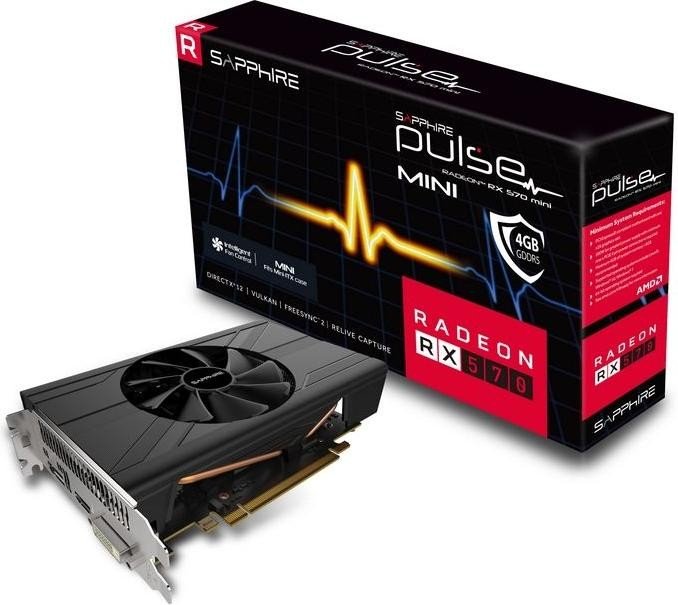

Sapphire Pulse ITX Radeon RX 570, 4GB GDDR5

Sapphire Pulse ITX Radeon RX 570, 4GB GDDR5


Sapphire
48h Usually ships within 48hrs.

US$417.99

add to cart


Manufacturer
Sapphire
48h Usually ships within 48hrs
Price
US$417.99
Click on a thumbnail to see more pictures for Sapphire Pulse ITX Radeon RX 570, 4GB GDDR5
Sapphire Pulse ITX Radeon RX 570, 4GB GDDR5Sapphire Pulse ITX Radeon RX 570, 4GB GDDR5Sapphire Pulse ITX Radeon RX 570, 4GB GDDR5Sapphire Pulse ITX Radeon RX 570, 4GB GDDR5

features

  • DirectX: 12.0
  • OpenGL: 4.5
  • OpenCL: 2.0
  • Shader Model: 5.0

Specs

RAM bandwidth
4GB GDDR5, 1750MHz, 256bit, 224GB/s
Performance
5095GFLOPS (Single), 318GFLOPS (Double)
Coreclock
1168MHz, Boost: 1284MHz
Shader-Units/TMUs/ROPs
2048/128/32
Cooling
1x Axial-fan (95mm)
Graphics Card Interface
PCIe 3.0
Design Height
Dual-Slot
Codename
Polaris 20 XL
Connectivity
DisplayPort 1.4
DVI
HDMI 2.0
Dedicated GPU
Radeon RX 570
Graphics Card
AMD Radeon
Lithography (nm)
14 nm
Power consumption
150W (TDP)
Power interface
1x 6-pin PCIe
RAM
4GB

description

The SAPPHIRE Pulse Radeon RX 570 also comes in the ITX format for users who want to power their HTPC or small-form-factor gaming PCs. Boost-clocked at1244 MHzand using only a single 6-pin power connector as well as single fan for cooling, the SAPPHIRE Pulse Radeon RX 570 ITX is a showcase of Polaris’ power efficiency.

System Requirement

450 Watt Power Supply (Suggestion)
1 x 6-pin AUX Power Connector
Blue-ray™ / HD DVD playback requires Blu-ray / HD DVD drive.
PCI Express® 2.0 or higher version based PC is required with one X16 lane graphics slot available on the motherboard in order for the card to be compatible with.

further info

Official Release Date Apr 18, 2017
PAX-Code PAX0008971784
Catalog No.  11266-06-20G
Item Code  4895106282049
Product Measures 17cm x 11.2cm x 3.6cm

recommendations

useful links


Missing links?

Please log in or create account to submit your link recommendations.

customer reviews

Average rating:  Too few reviews (min 3 reviews required)
Total votes:2

If you are familiar with Sapphire Pulse ITX Radeon RX 570, 4GB GDDR5, why not let others know?

Please note that opinions expressed in any review are those of our customers and do not necessarily match those of the Play-Asia.com team.

ths.saisoks (1) on 22, Jul. 2017 23:07 (HKT)
Good gpu
Quality products And very fast delivery
[Do you think this review was helpful? ]
imikeskinner (1) on 28, Apr. 2017 17:13 (HKT)
Amazing for the size and power consumption.
I bought this for an old Dell machine which only had enough space for a motherboard-powered, single-slot, low-profile graphics card. I'd hoped to use it as a media center, but it also runs new games at mid-spec and everything from maybe 2013 backwards at top. This is with ageing DDR2 DIMMs and an old processor provisioned to reliably run Excel 2010 on someone's desk. This is also the 2GB GDDR5 edition, which I couldn't find anywhere else. It seems to compensate for the 64-bit memory bus to some extent. What it does with the power it draws down is most impressive, the stock Dell PSU I'm using it with has very little wattage to spare but it's still happily playing X-COM 2 at medium spec.
[Do you think this review was helpful? ]
