GIGABYTE B860M Eagle Plus WIFI6E

  • Gigabyte
  • متوافق مع Desktop (Desktop)
USD 0.00

sold

مميزات المنتج

  • Supports Intel Core Ultra processors (Series 2)
  • Digital 8+1+2 phases VRM solution
  • Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
  • D5 Bionic Corsa for Infinite Memory Performance
  • AI Perfdrive : Provides optimal and customized BIOS preset profile for users
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click : M.2 heatsinks with screwless design
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Fast Networking : 2.5GbE LAN & Wi-Fi 6E
  • Extended Connectivity : HDMI, DisplayPort

المواصفات

Cooling
1x CPU fan 4-pin PWM, 1x CPU fan/pump 4-pin PWM, 1
Audio
Realtek
BIOS
1x 32MB (256MB)
Buttons/switches
USB BIOS Flashback/​Q-Flash Plus (internal)
الشريحة
Intel B860
Connectivity
Wi-Fi 6E
CPU
Core Ultra 200S , CPU compatibility list

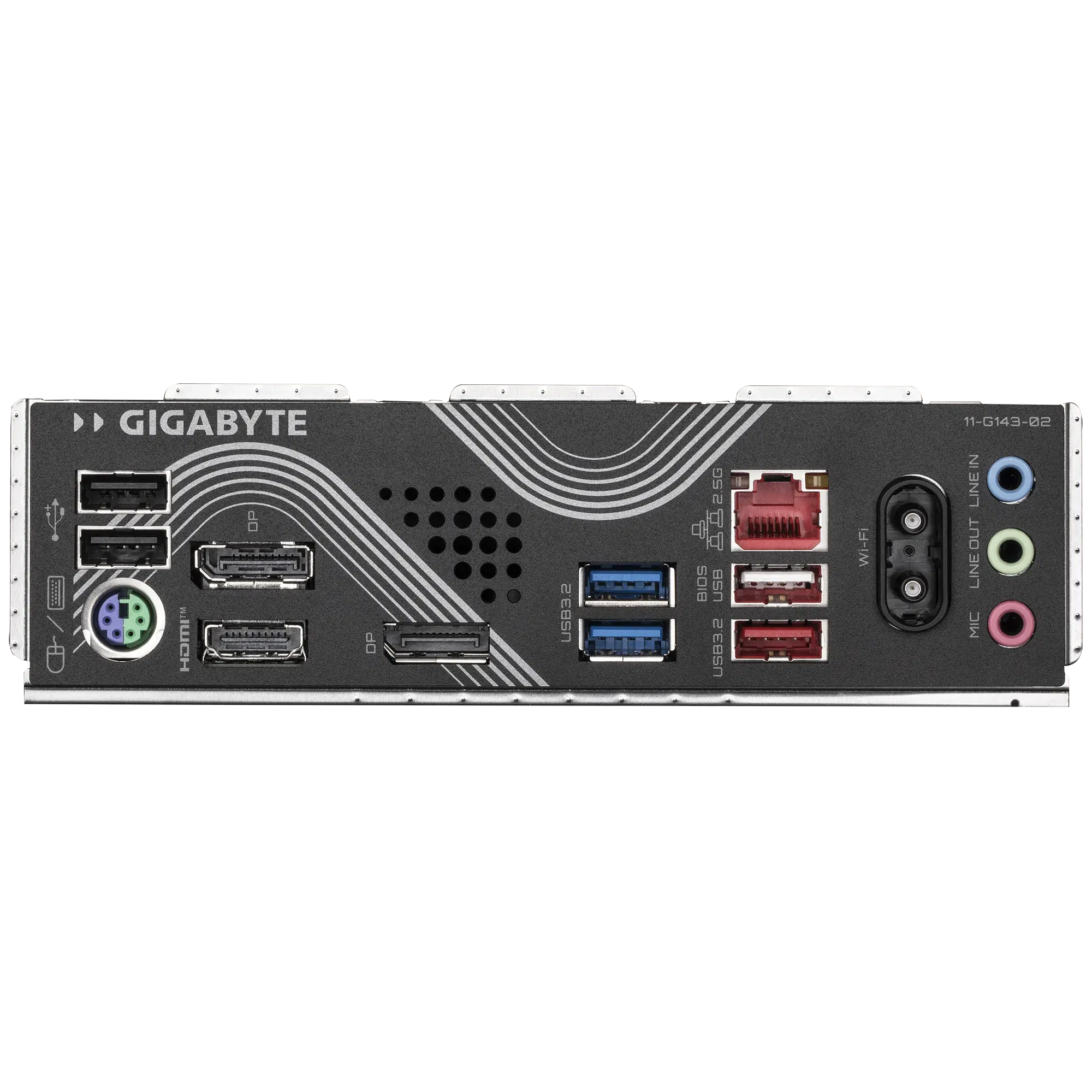

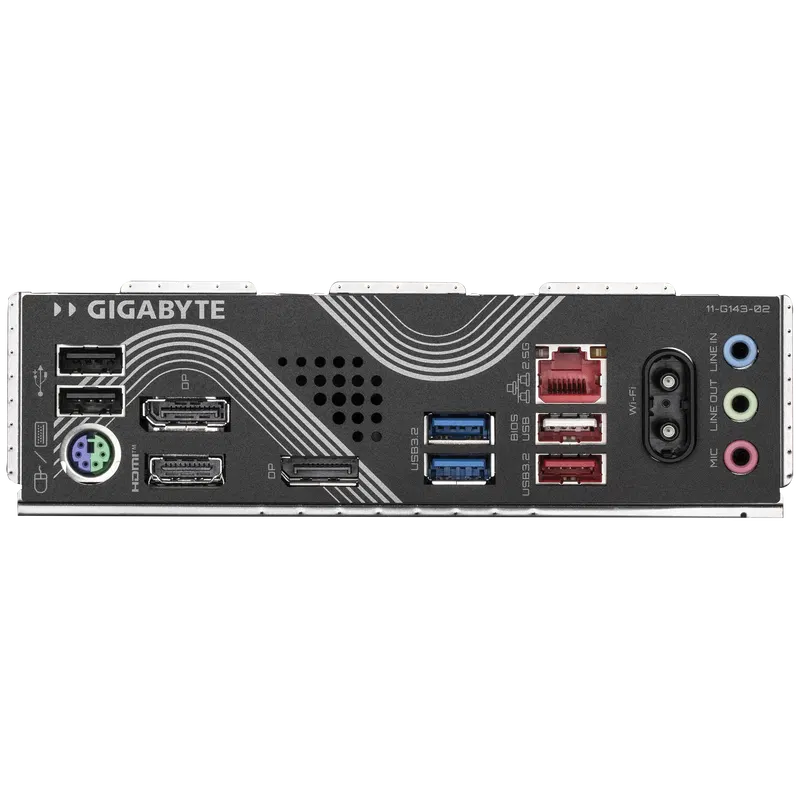

External connections
1x HDMI 2.1 (HDCP 2.3, iGPU), 1x DisplayPort 2.1 (
Form Factor
mATX
Graphic
iGPU
Header lighting
3x 3-pin ARGB (+5V/​DATA/​GND, max. 3A, GIGABYTE G
Internal connections
1x USB 3.0 Header Key-A (5Gb/​s, 1x USB-C), 1x USB
MOSFETs CPU (VCORE)
6x 50A
MOSFETs SoC (VCCGT)
1x 50A
Power connections
1x 24-pin ATX, 1x 8-pin EPS12V
RAM Type
DDR5
Socket
LGA 1851
VRM
8+1+2+1, 50A PPAK VRM
Warranty
3 Year(s)

وصف المنتج

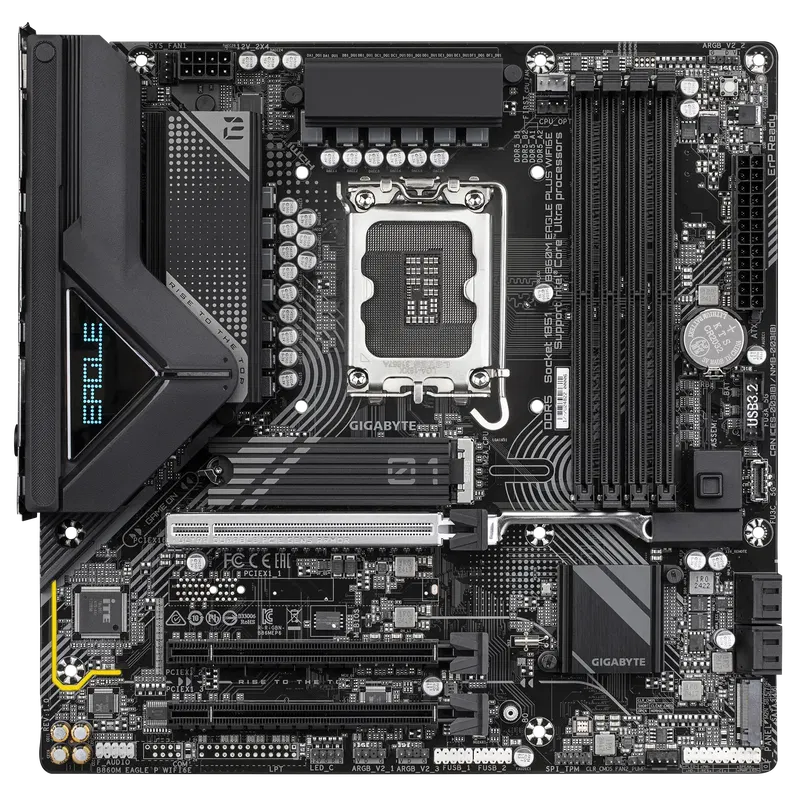

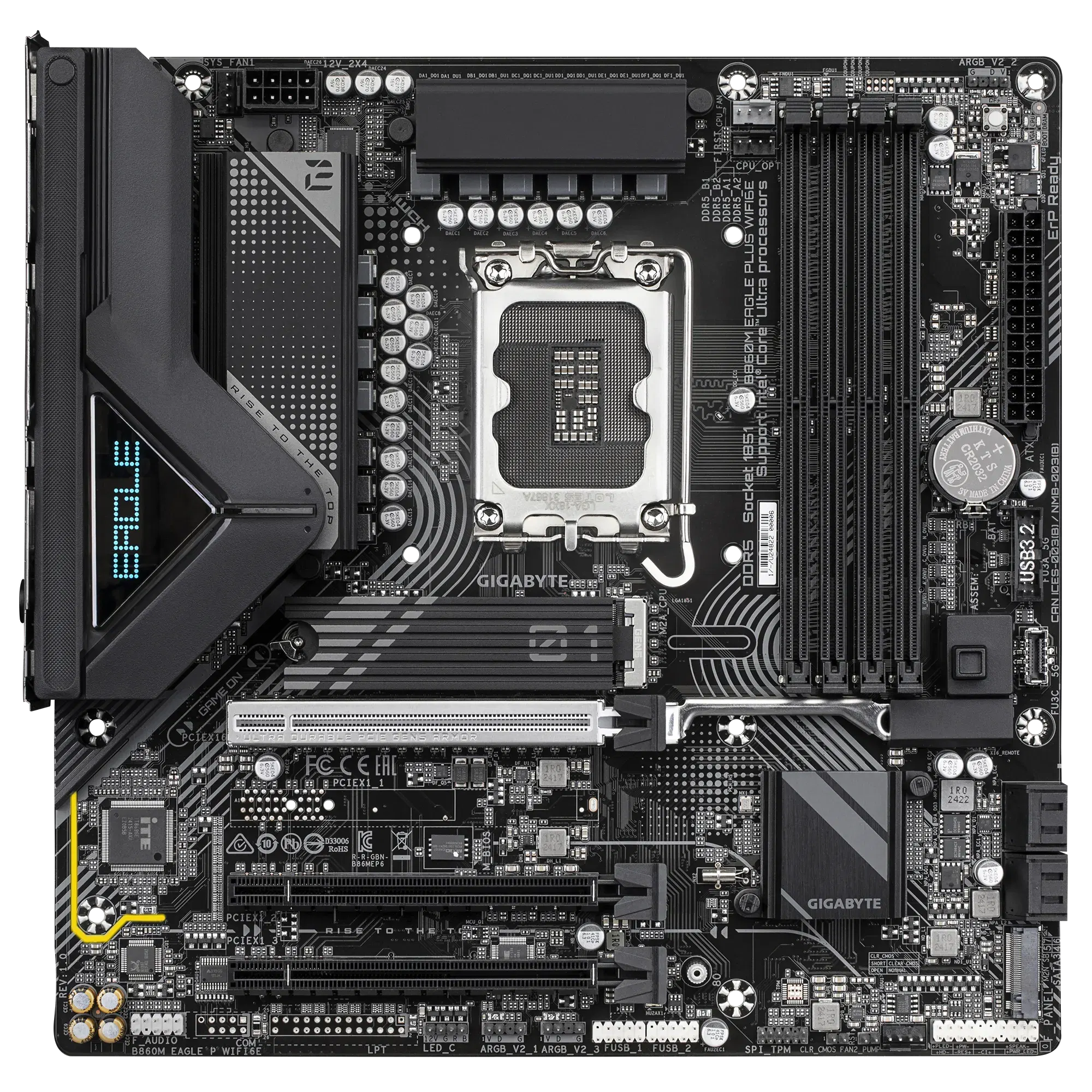

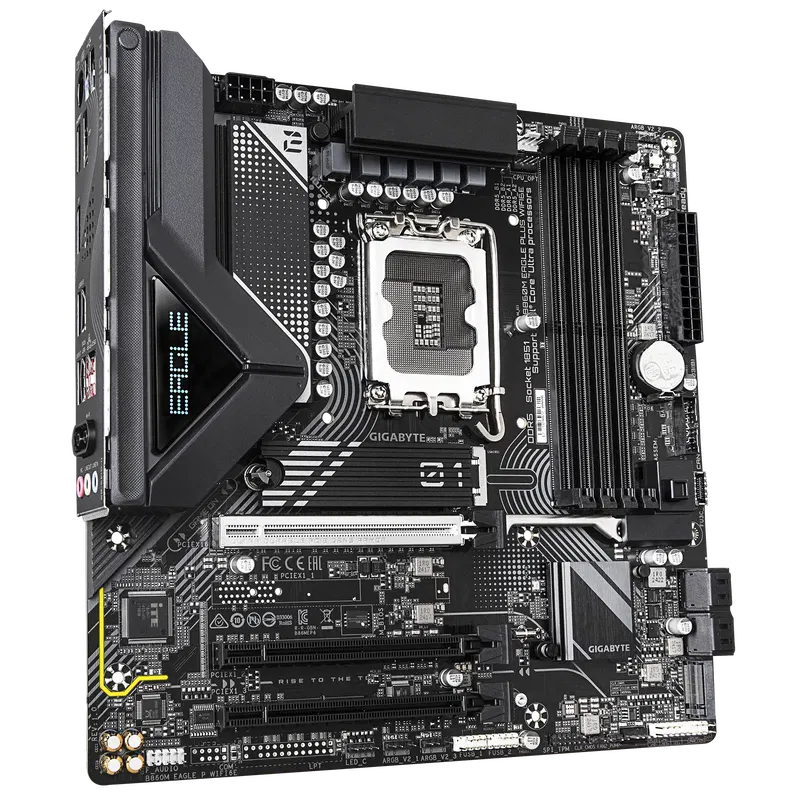

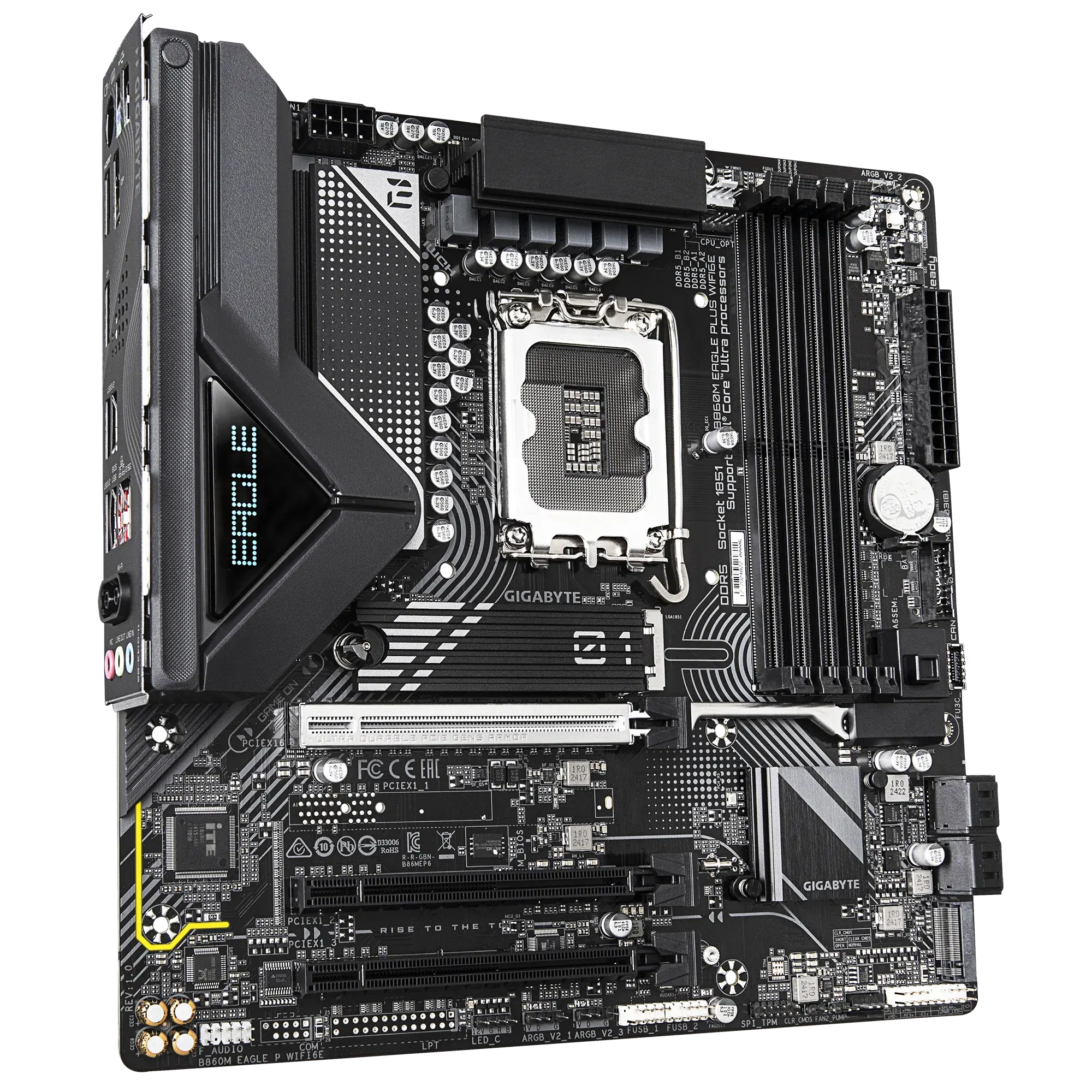

Gigabyte B860M EAGLE PLUS WIFI6E
Start your ultimate compact gaming build with the Gigabyte B860M EAGLE PLUS WIFI6E LGA 1851 Micro-ATX Motherboard. The motherboard features the LGA 1851 socket, which can support Intel Core Ultra processors (Series 2). With four DDR5 slots, one PCIe 5.0 x16 slot with PCIe UD Slot, two M.2 slots, and four SATA slots, this motherboard can provide the performance you need for both gaming and content creation. With EZ-Latch Plug, Plus, and Click, installing a graphics card and M.2 SSDs with heat sinks is user-friendly and doesn't require tools. For online connectivity, the motherboard provides both fast 2.5GbE LAN and Wi-Fi 6E. This motherboard has a Micro-ATX form factor, which is ideal for smaller PC builds.

AORUS AI Snatch
Unleash optimal performance with one-click activation. With just a single click, unleash the full potential of DDR5 memory, instantly boosting performance for gaming and creative content. Get enhanced computing power, fast AI performance, EZ to Peak, safe overclocking, and less power usage.

Digital VRM Design
This motherboard delivers consistent, high-powered performance to elevate your overclocking to the next level. 8 VCORE phases unlock the full power of your multi-core CPU while 1 VCCGT phase is optimized for integrated GPU performance and memory management within the CPU. 2 VCCSA phases provide reliable power to your CPU-connected PCIe lanes for uninterrupted performance.

Wi-Fi EZ-Plug
The Wi-Fi EZ-Plug design integrates Wi-Fi antenna plugs into a single adapter, making it easy to install. Take full advantage of Wi-Fi 6E.

2.5GbE LAN
Supercharge your online gaming with the 2.5GbE RJ45 LAN jack. With fast speeds, minimal lag, and optimal performance, you'll be able to elevate your gaming rig for online competition.

Comprehensive Thermal
With an advanced full-metal thermal design and durable heat sinks, this motherboard is designed to keep your system cool and efficient under graphics-intensive workloads. The VRM heat sinks provide four times the cooling surface for efficient heat dissipation. The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs. The RL-ILM significantly improves thermal performance up to 4°C and avoids possible bending of the CPU IHS (integrated heat spreader). Smart Fan 6 allows you to take full control of both your PWM and DC fans, as well as water cooling pumps.

EZ-Latch Designs
PCIe EZ-Latch Plus

Easy ejection with a single click for graphics cards

M.2 EZ-Latch Click
Tool-less installation for M.2 heat sink

M.2 EZ-Latch Plus
Tool-less installation for M.2 SSDs

Gigabyte Control Center
With RGB FUSION, customize the RGB lighting with precise control over individual LEDs in the Gigabyte Control Center.
