GIGABYTE X870 AORUS Elite WIFI7 ICE

  • Gigabyte
  • Compatible with Desktop (Desktop)
USD 0.00

sold

Product Features

  • AMD Socket AM5:Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital twin 16+2+2 phases VRM solution
  • Dual Channel DDR5:4*DIMMs with AMD EXPO Memory Module Support
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus:PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click:M.2 heatsinks with screwless design
  • Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • Ultra-Fast Storage:4*M.2 slots, including 3* PCIe 5.0 x4
  • Efficient Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard L
  • Fast Networking:2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • Extended Connectivity:Dual USB4 Type-C with DP-Alt, HDMI
  • Reliable Audio:Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
  • Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
  • PCIe UD Slot X:PCIe 5.0 x16 slot with 10X strength for graphics card

Specs

Cooling
1x CPU fan 4-pin PWM, 1x CPU fan/pump 4-pin PWM, 3
Audio
Realtek ALC1220, DAC (ESS ES9118), DTS:X Ultra
BIOS
1x 32MB (256MB)
Buttons/switches
USB BIOS Flashback/​Q-Flash Plus (external), power
Chipset
AMD X870
Connectivity
Wi-Fi 7
CPU
Ryzen 7000 , Ryzen 8000G , Ryzen 9000 , CPU compat

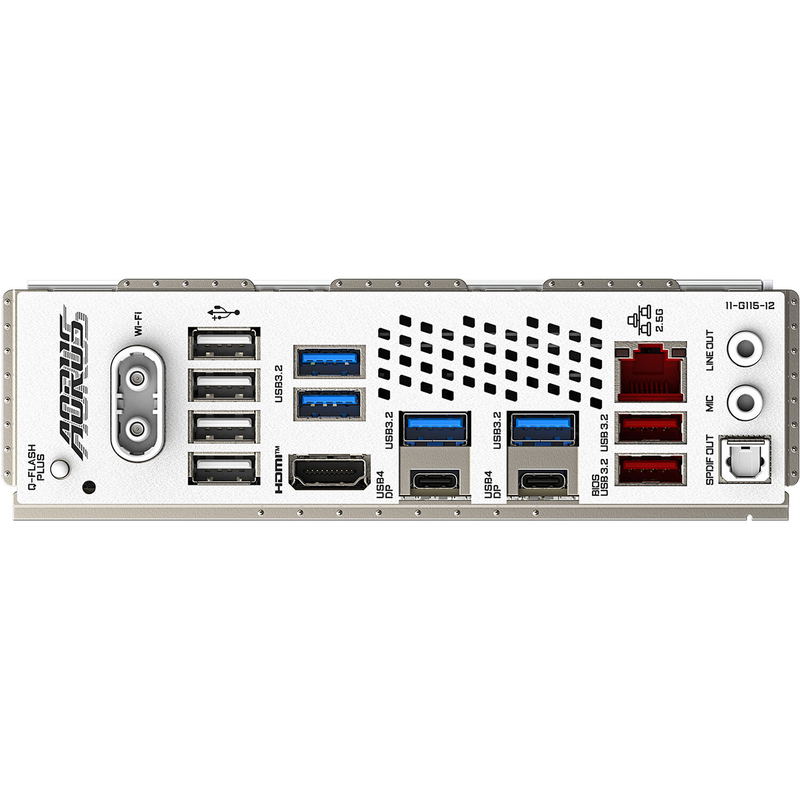

External connections
1x HDMI 2.1 (iGPU), 2x USB4 with DisplayPort 1.4 (
Form Factor
ATX
Graphic
iGPU
Header lighting
3x 3-pin ARGB (+5V/​DATA/​GND, max. 5A), 1x 4-pin
Internal connections
1x USB 3.2 Header Key-A (20Gb/​s, 1x USB-C), 2x US
MOSFETs CPU (VCORE)
16x 55A NCP302155 (DrMOS) [GIGABYTE: 60A]
MOSFETs SoC (VCCGT)
2x 55A NCP302155 (DrMOS) [GIGABYTE: 60A]
Power connections
1x 24-pin ATX, 2x 8-pin EPS12V
RAM Type
DDR5
Socket
LGA 1718
VRM
16+2+2, 18 virtual CPU phases (2x8+2), 10 real CPU
Warranty
3 Year(s)

Item Description

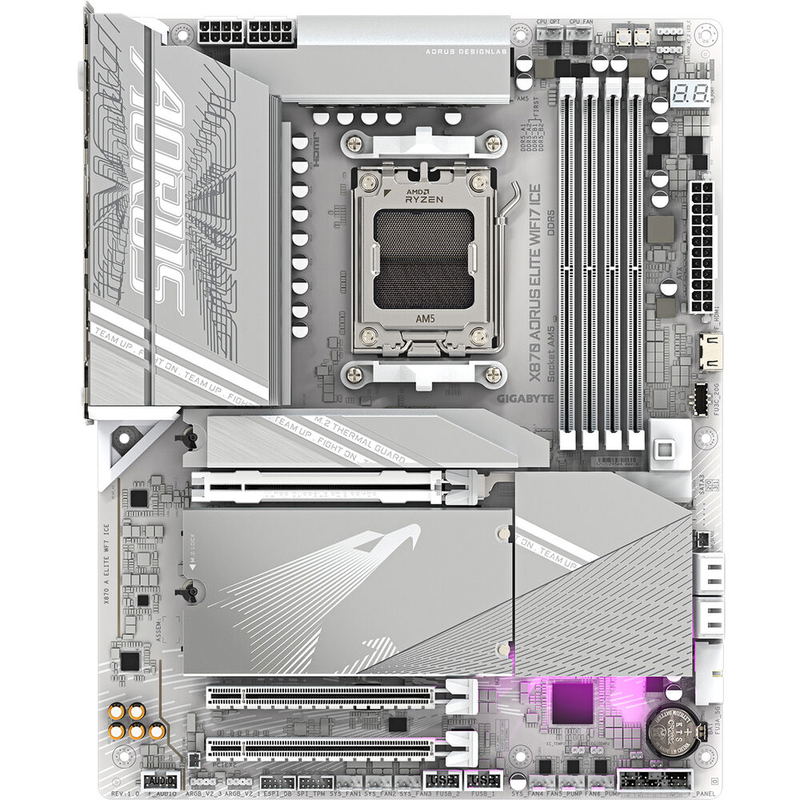

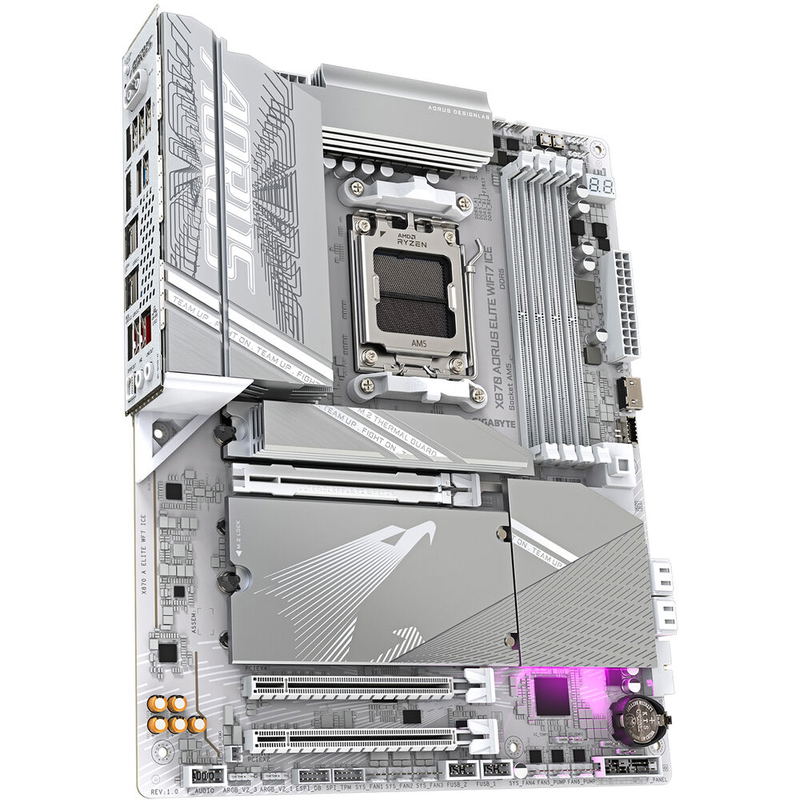

Gigabyte X870 AORUS ELITE WIFI7 ICE
Designed for both gamers and creative professionals, the white Gigabyte X870 AORUS ELITE WIFI7 ICE AM5 ATX Motherboard supports AMD 7000, 8000, and 9000 series processors, which utilize the AM5 socket. With four DDR5 slots, one PCIe 5.0 x16 slot with PCIe UD Slot X, one PCIe 4.0 x4 slot, one PCIe 3.0 x2 slot, four M.2 2280 slots, and four SATA slots, you'll be able to build a powerful gaming rig with this motherboard. With EZ-Latch Plus and Click, installing a graphics card and M.2 SSDs with heat sinks is user-friendly and doesn't require tools. For online connectivity, the motherboard provides fast 2.5GbE LAN and Wi-Fi 7. Install Windows 11 (64-bit) to take full advantage of this motherboard's features.

AORUS AI SNATCH
Unleash optimal performance with one-click activation. With just a single click, unleash the full potential of DDR5 memory, instantly boosting performance for gaming and creative content. Get enhanced computing power, fast AI performance, EZ to Peak, safe overclocking, and less power usage.

Zenith of the Memory
Shielded Memory Routing

Advanced shielding inside the PCB keeps your memory signals clean and interference-free

Daisy-Chained Routing
Innovative design removes signal bottlenecks, allowing for fast memory speeds and an optimal gaming setup

6-Layer Server-Grade PCB
Top-of-the-line server-grade PCB material minimizes signal loss, providing fast DDR5 data transmission.

Digital Twin VRM Design
This motherboard delivers consistent, high-powered performance to elevate your overclocking to the next level. 16 VCORE phases unlock the full power of your multi-core CPU while 2 SOC phases are optimized for integrated GPU performance and memory management within the CPU. 2 MISC phases provide reliable power to your CPU-connected PCIe lanes for uninterrupted performance.

Wi-Fi 7
Wi-Fi 7 introduces support for expansive 320/160 MHz channels, dramatically increasing bandwidth for fast data transfer speeds.

Leveraging 4K-QAM technology, Wi-Fi 7 elevates data throughput, enabling fast file transfers and buffer-free streaming.

Wi-Fi 7's MLO (Multi-Link Operation) technology allows strategic bandwidth allocation - dedicating 2.4 GHz for streaming and 5/6 GHz for gaming, resulting in an interruption-free network experience.

With its deterministic low latency, Wi-Fi 7 minimizes delays, making it the ideal choice for time-sensitive applications, such as video conferencing and competitive online gaming.

2.5GbE LAN
Supercharge your online gaming with the 2.5GbE RJ45 LAN jack. With fast speeds, minimal lag, and optimal performance, you'll be able to elevate your gaming rig for online competition.

EZ Debug Zone
Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.

EZ-Latch Designs
PCIe EZ-Latch Plus

Easy ejection with a single slick for graphics cards

M.2 EZ-Latch Click
Tool-less installation for M.2 heat sink

M.2 EZ-Latch Plus
Tool-less installation for M.2 SSDs

Q-FLASH
Q-FLASH Auto Scan

When using USB flash drive during Q-Flash, the BIOS file will be auto scanned instead of searching manually

Q-FLASH Plus
Upgrade your BIOS without the need to install the CPU, RAM, or GPU first

Sensor Panel Link
The built-in video port streamlines the Sensor Panel setup without management concerns.

Ultra Durable Design
PCIe UD Slot X
M.2 UD Slot PG5
UD Power Connector
Ultra Durable PCIe Armor

Gigabyte Control Center
RGB Fusion

Customize the RGB lighting with precise control over individual LEDs with Gigabyte Control Center.
