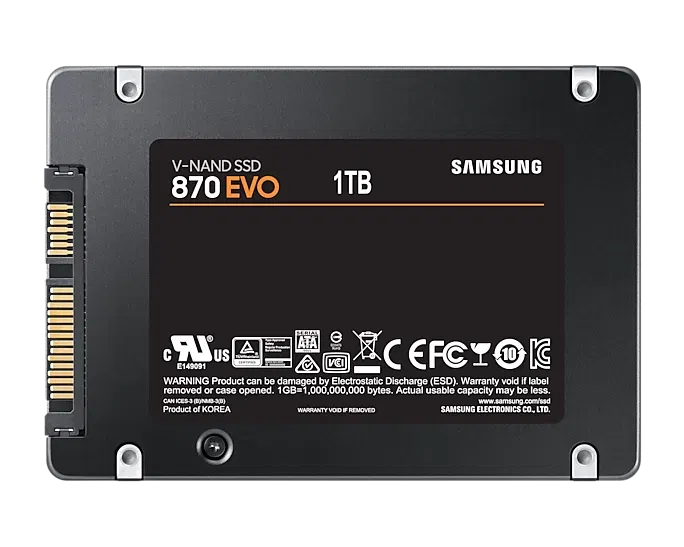

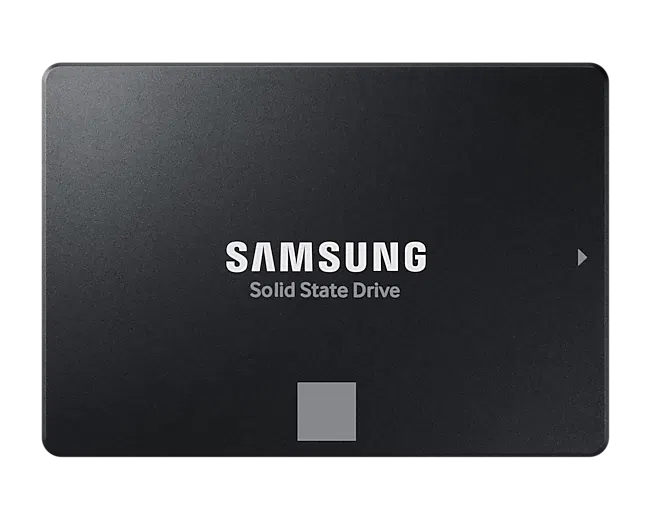

Samsung 870 EVO SATA 2.5" SSD (1TB) image 1 Samsung 870 EVO SATA 2.5" SSD (1TB) image 2
Free_Shipping_Eligible_Plain
Samsung 870 EVO SATA 2.5" SSD (1TB) thumbnail 1
Samsung 870 EVO SATA 2.5" SSD (1TB) thumbnail 2

US$4.50

Samsung 870 EVO SATA 2.5" SSD (1TB)

  • Samsung
  • Compatible with Laptop, Desktop
Capacity
1 TB 2 TB 4 TB 500 GB
Get Shipping Quote
US$249.99
Or Quick Checkout

Product Features

  • SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
  • Up to 560 MB/s Sequential Read * Performance may vary based on system
  • Up to 530 MB/s Sequential Write * Performance may vary based on system

Specs

Capacity
1 TB
Form Factor
2.5"
Internal/External
Internal
SSD Controller
Samsung MKX
Storage Interface
SAS 6Gb/s

Item Description

General Feature

Application
Client PCs

Rated Capacity
1,000 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Form Factor
2.5 inch

Interface
SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface

Dimension (Pack: WxHxD)
100 X 69.85 X 6.8 (mm)

Weight
Approx. 45.0g Weight

Storage Memory
Samsung V-NAND 3bit MLC

Controller
Samsung MKX Controller

Cache Memory

Special Feature


TRIM Supported
S.M.A.R.T Supported
GC (Garbage Collection) - Auto Garbage Collection Algorithm
Encryption Support - AES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)
WWN Support - World Wide Name supported
Device Sleep Mode Support - Yes

Performance

Sequential Read
Up to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration.

Sequential Write
Up to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated.

Random Read (4KB, QD32)
Up to 98,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated.

Random Write (4KB, QD32)
Up to 88,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated.

Random Read (4KB, QD1)
Up to 13,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated.

Random Write (4KB, QD1)
Up to 36,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated.

Environment

Average Power Consumption (system level)
Average: 2.5 W *Maximum: 4.0 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration.

Power consumption (Idle)
Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration.

Allowable Voltage
5V ± 5% Allowable voltage.

Reliability (MTBF)
1.5 Million Hours Reliability (MTBF).

Operating Temperature
0 - 70 ℃ Operating Temperature.

Shock
1,500 G & 0.5 ms (Half sine).

Customer reviews


No reviews for Samsung 870 EVO SATA 2.5" SSD (1TB) yet.
