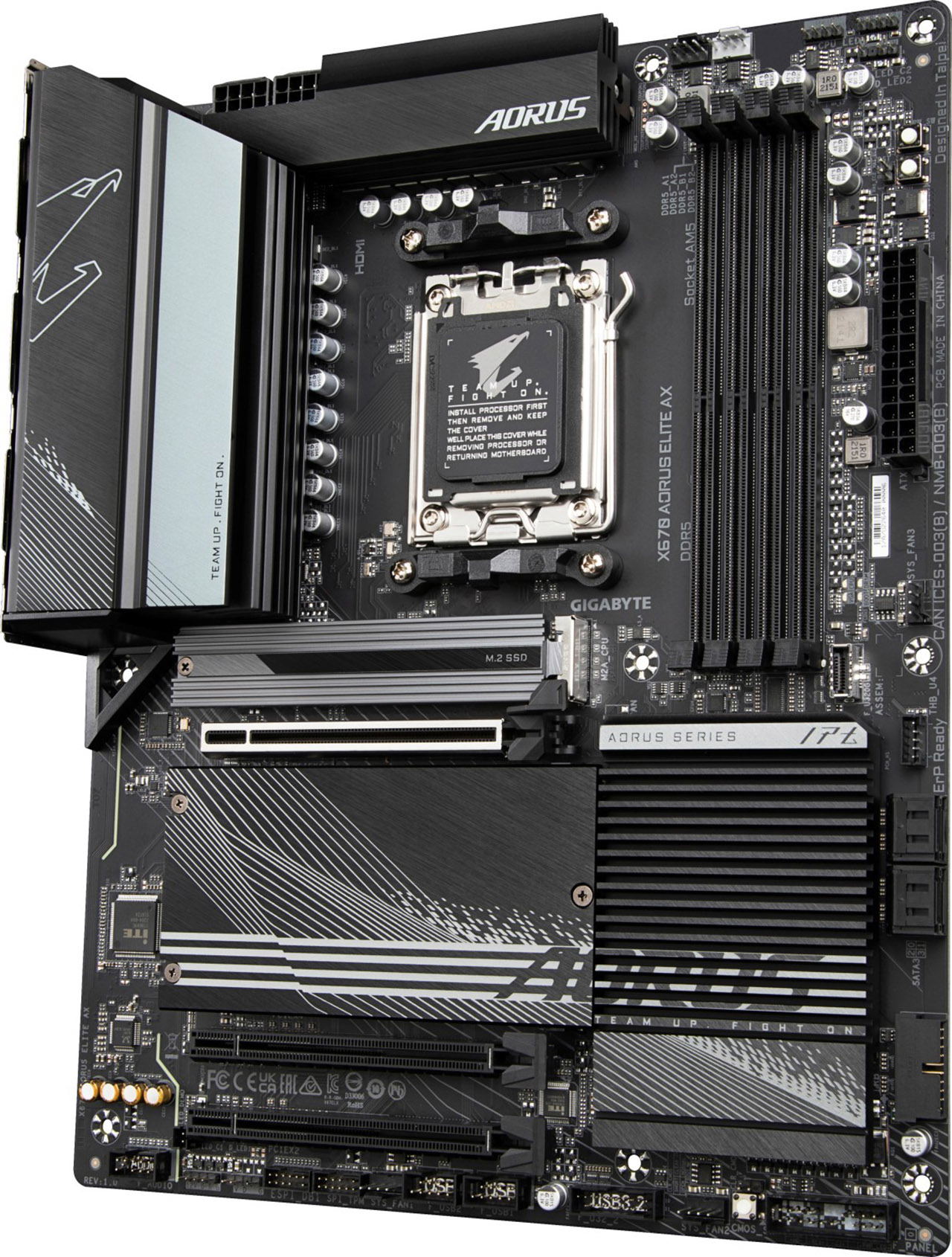

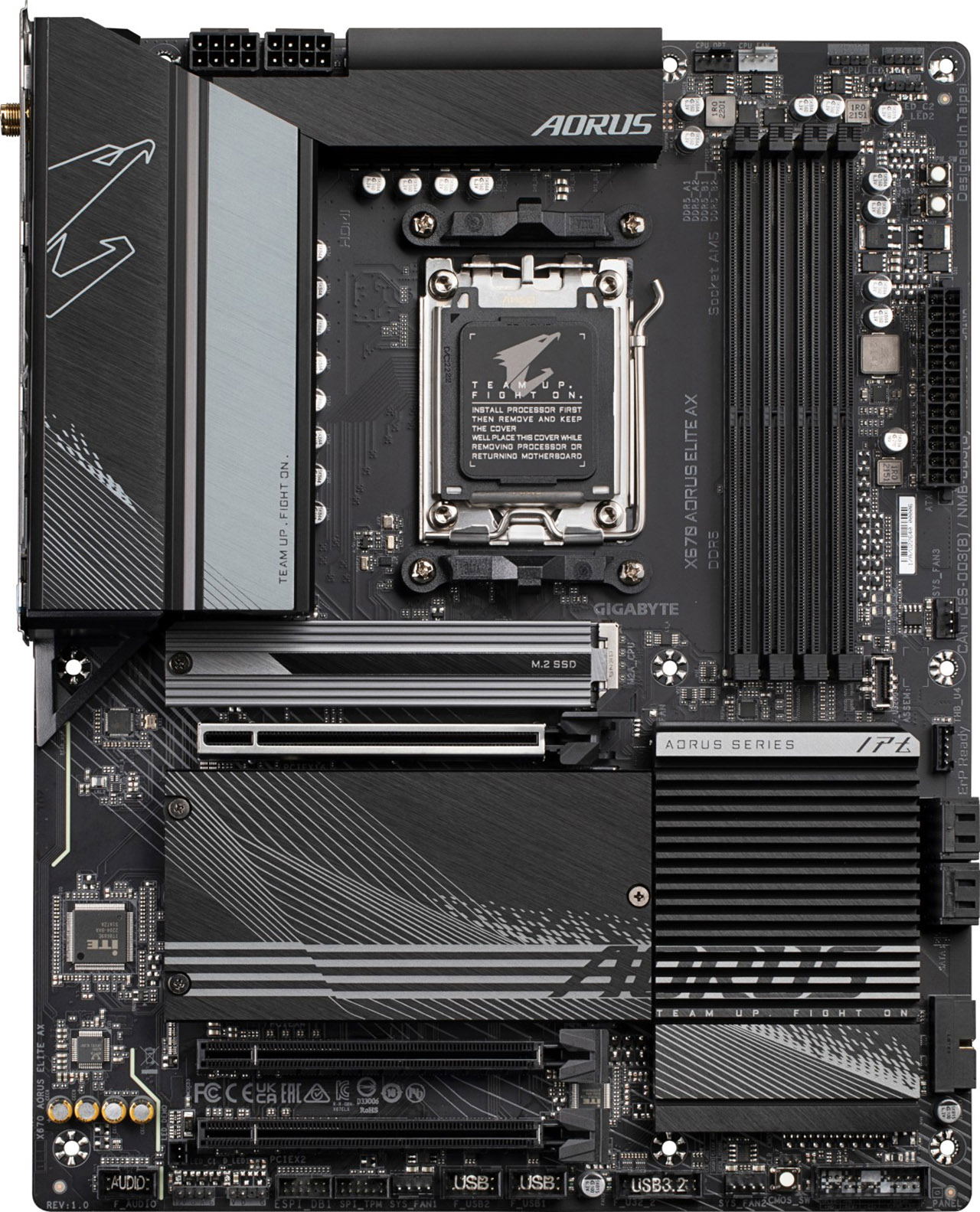

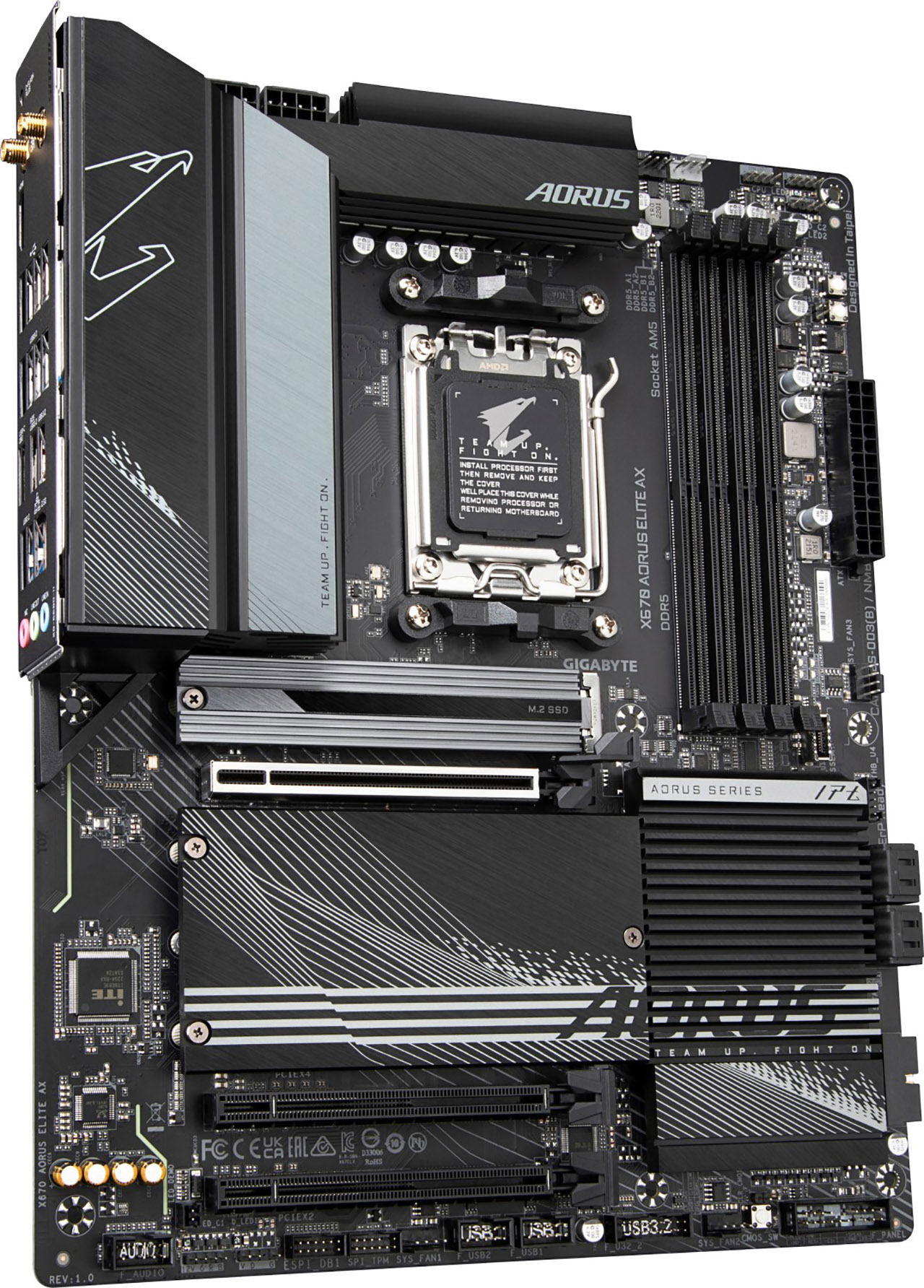

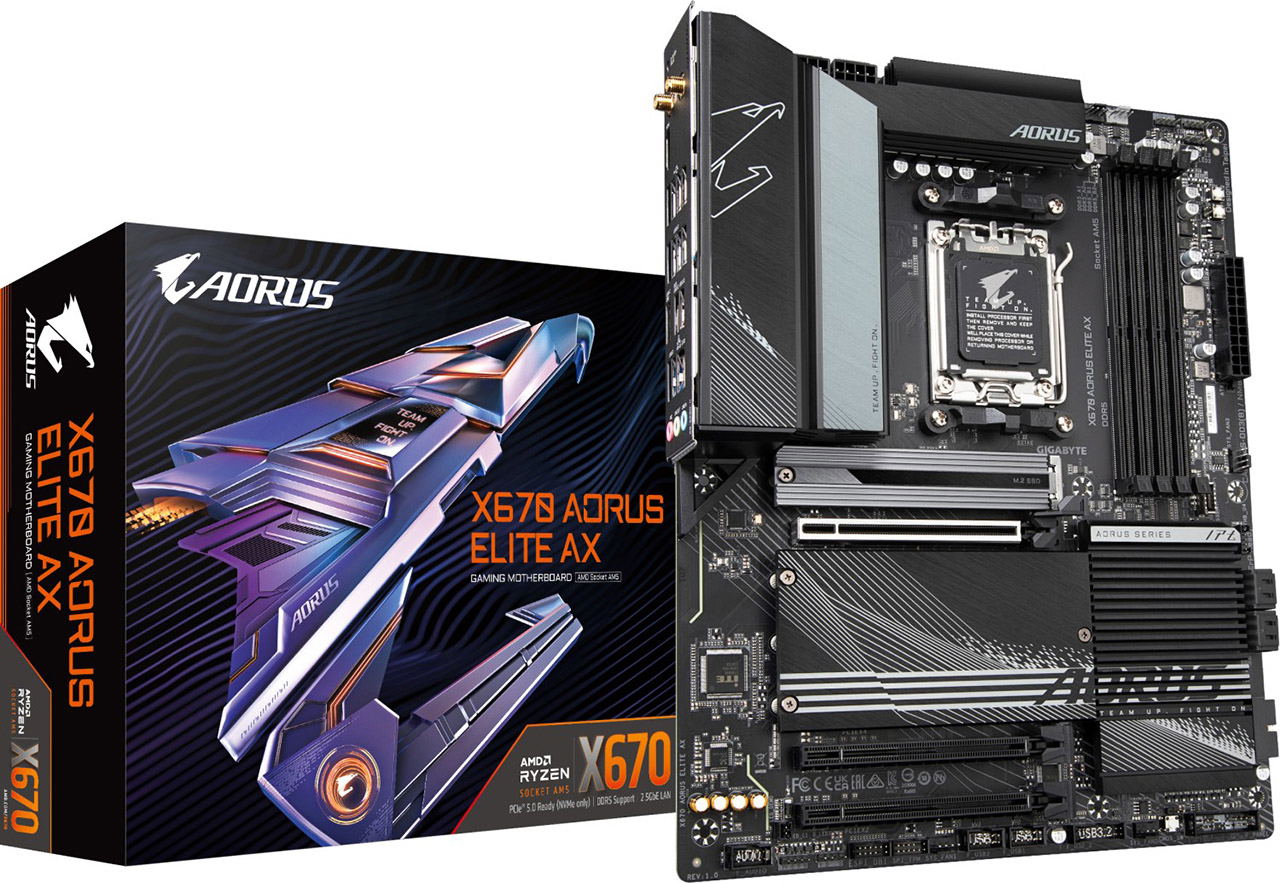

GIGABYTE X670 AORUS Elite AX

  • Gigabyte
  • Compatible con Desktop (Desktop)
USD 0.00

sold

Características del producto

  • 8+8 Solid Pin CPU Power Connector
  • Twin 16+2+2 Digital VRM Design - 70A Smart Power Stage, 2X Copper PCB ,PCIe 5.0 Ready PCB
  • Advanced Thermal Design - Fully Covered MOSFET Heatsinks, 8 mm Mega-Heatpipe, 7 W/mk Thermal Conductivity Pad, Aluminum I/O Cover
  • Socket AM5 Supports AMD Ryzen™ 7000 Series Processors
  • Multi-key - Multiple function set by BIOS, Reset/RGB Switch/Direct to BIOS/Safe Mode
  • Dual Channel SMD DDR5 Memory -
  • 24 Pin ATX Power Connector
  • PCIe EZ-Latch

Especificaciones

RAM Modules
4 pcs
Cooling
1x CPU fan 4-pin, 1x CPU fan/​pump 4-pin, 3x fan
Audio
7.1 (Realtek ALC897)​​​​​​​
BIOS
1x 32MB (256Mb)​​​​​​​
Buttons/switches
Power button (internal), reset button (internal),
Chipset
AMD X670
Connectivity
Wi-Fi 6E
CPU
Ryzen 8000G , Ryzen 7000 , without TDP limitation

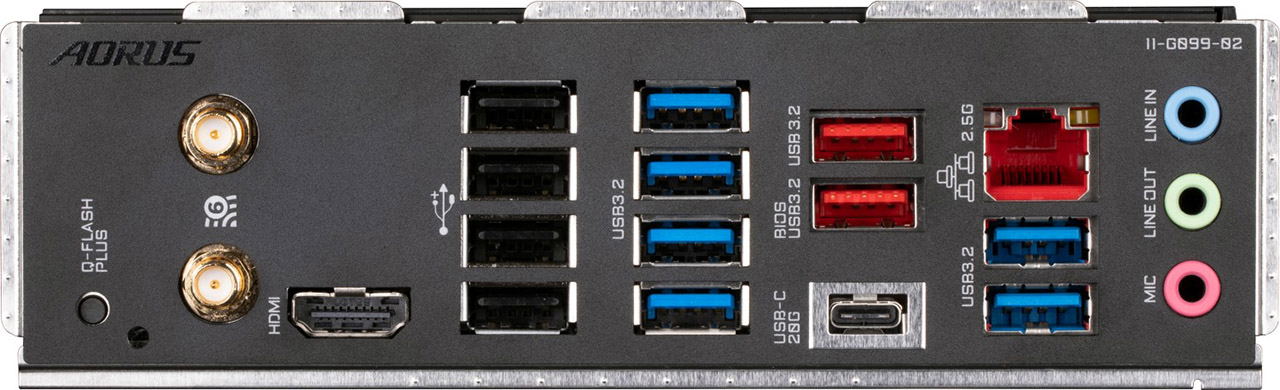

External connections
1x HDMI 2.1 (iGPU), 1x USB-C 3.2 (20Gb/​s), 2x U
Form Factor
ATX
Graphic
iGPU
Header lighting
3x 3-pin ARGB (+5V/​DATA/​GND, max. 5A), 2x 4-
Internal connections
1x USB-C 3.2 Key-A header (20Gb/​s), 2x USB 3.0
MOSFETs CPU (VCORE)
16x 70A TDA21472​​​​​​​
Power connections
1x 24-pin ATX, 2x 8-pin EPS12V​​​​​​??
RAM Type
DDR5
VRM
18 virtual phases (16+2), 10 real phases (8+2), PW
Warranty
3 Year(s)

Descripción del artículo

Introducing the X670 AORUS ELITE AX, a motherboard crafted for the future with unrivaled performance and cutting-edge features. With a 5-Year Warranty, this board is engineered to support AMD Ryzen 7000 Series Processors and DDR5 memory compatibility.

Experience commanding power with a Direct 16+2+2 Phases Digital VRM Solution and an 8-Layer 2X Copper PCB, ensuring stability and reliability. Stay cool under pressure with an Advanced Thermal Design, M.2 Thermal Guard, and Ultra Durable Armor.

Connectivity reaches new heights with PCIe 5.0, Quad NVMe x4 M.2 slots, USB-C, and Bluetooth 5.2. M.2 EZ-Latch makes installation a breeze with its quick-release, screwless design.

Get lightning-fast networking with 2.5GbE LAN and AMD WiFi 6E 802.11ax. Dynamic audio is at your fingertips with 8-Ch HD Audio, Audio Noise Guard, and High-End Audio Capacitors.

Fine-tune your system with RGB FUSION, Addressable LED & RGB LED Strip support, Smart Fan 6, and Multi-key functionality. Update your BIOS hassle-free with Q-Flash Plus, without the need to install CPU, memory, and GPU.

The X670 AORUS ELITE AX heralds a new era in motherboard technology, delivering unmatched performance, upgraded power design, premium storage standards, and exceptional connectivity to optimize your computing experience.
