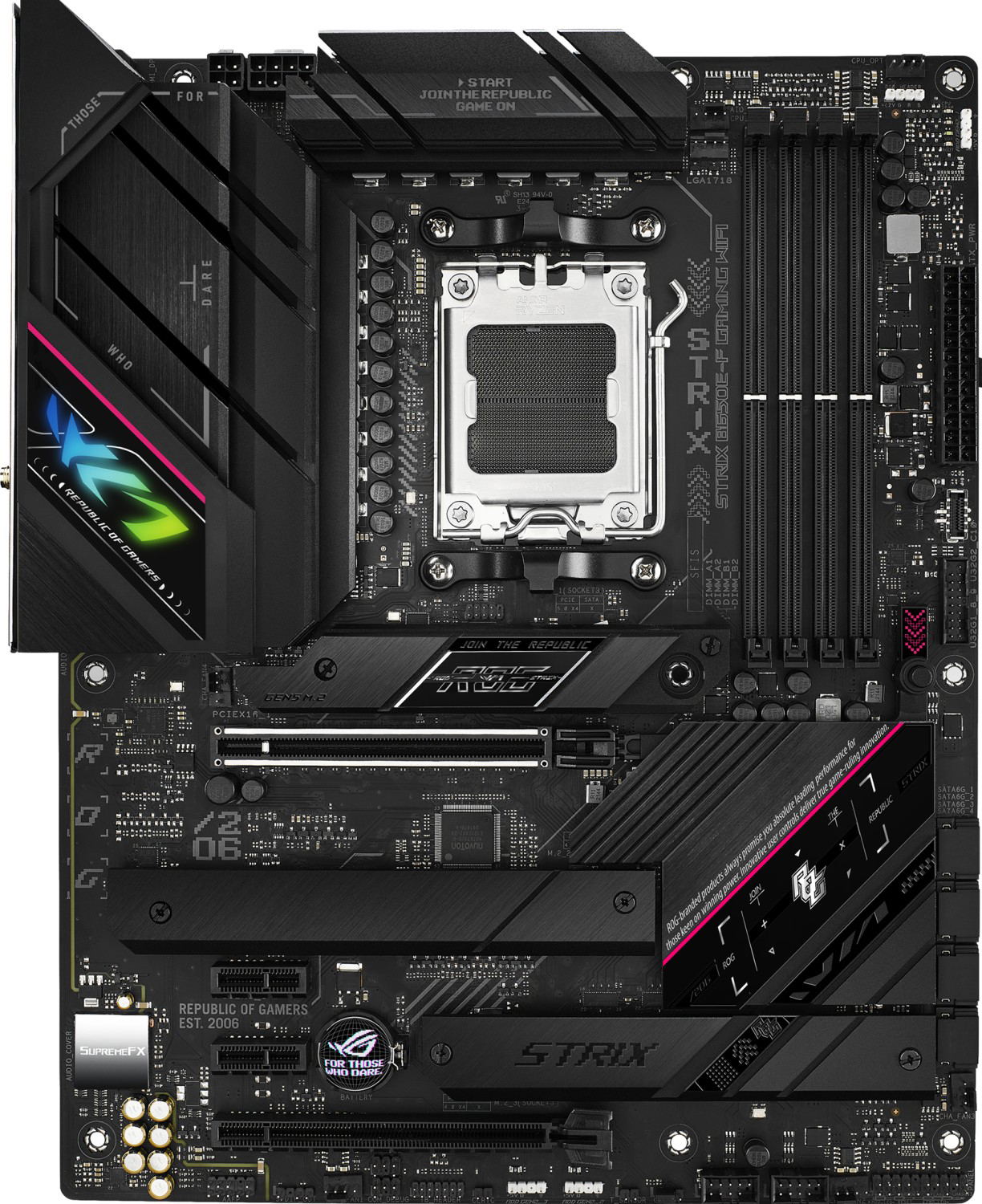

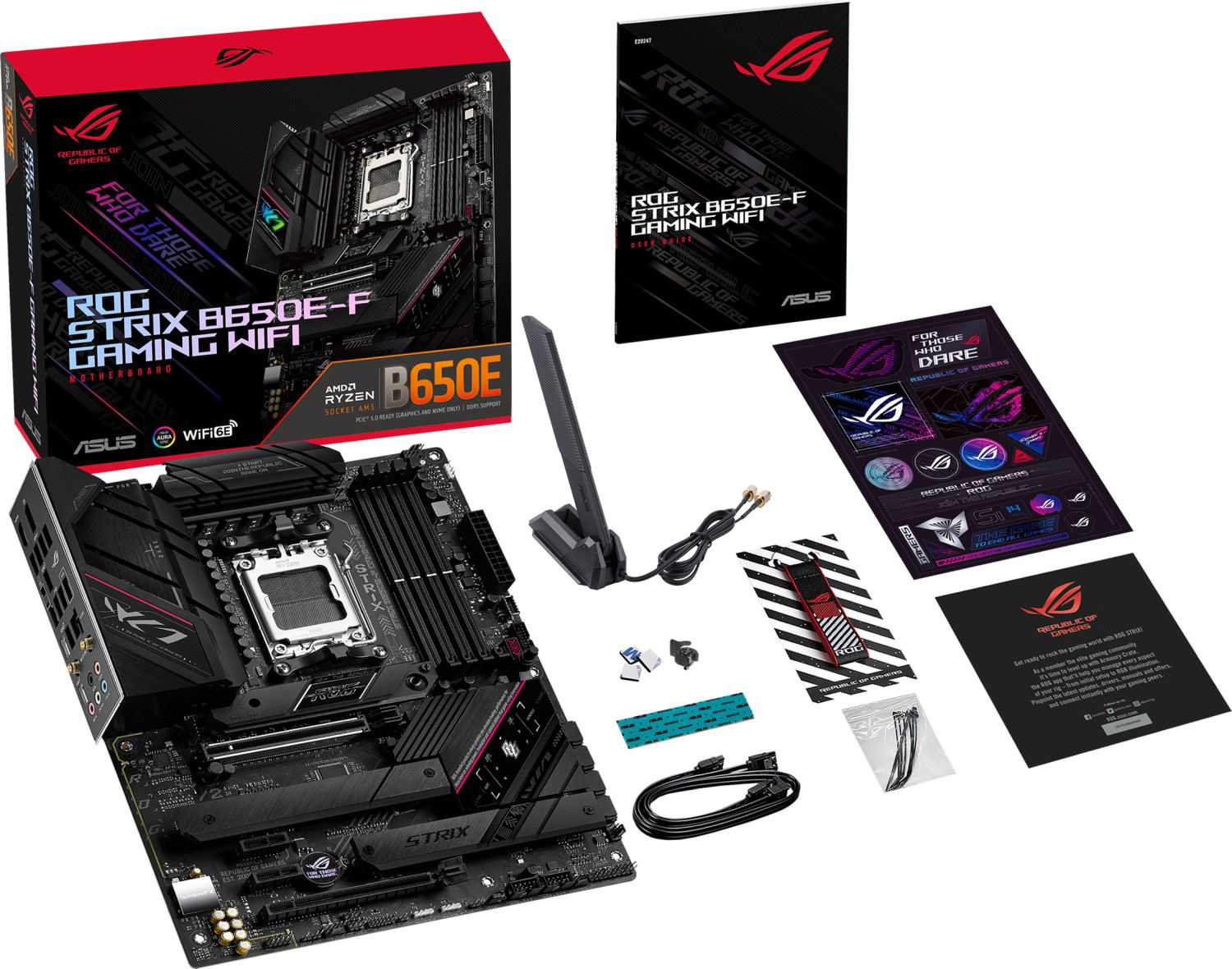

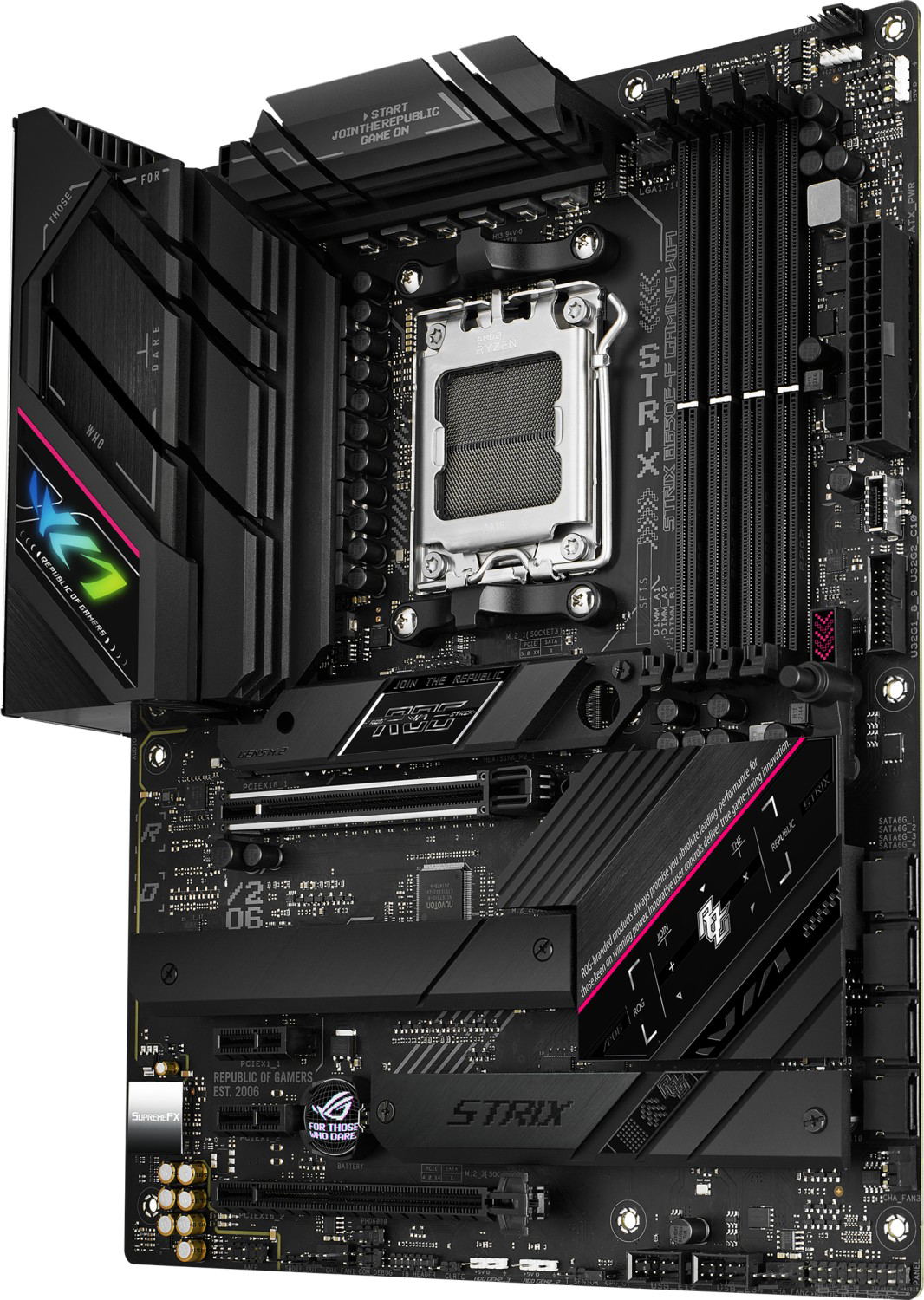

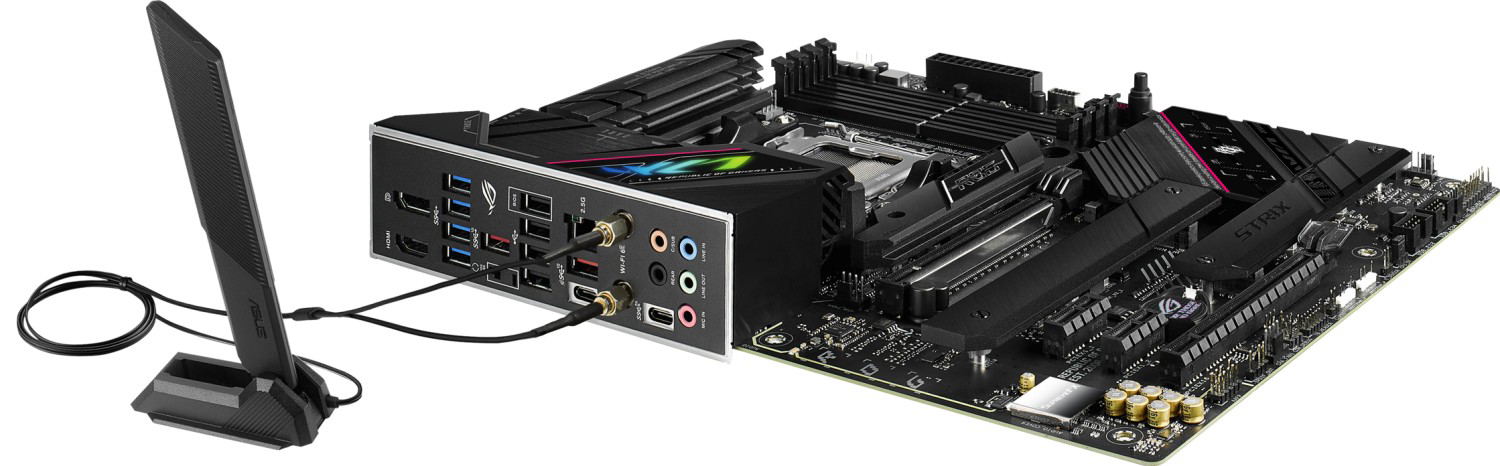

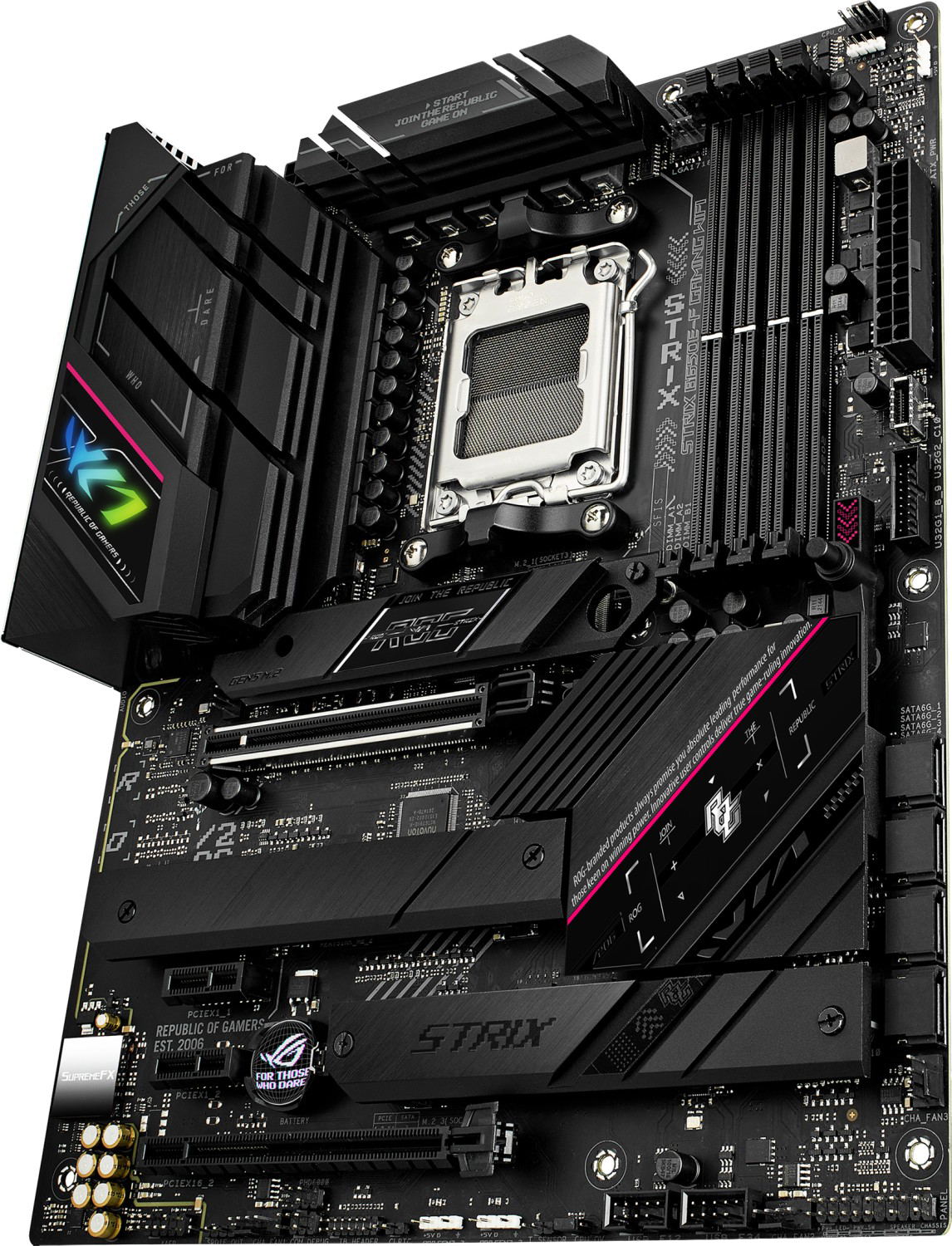

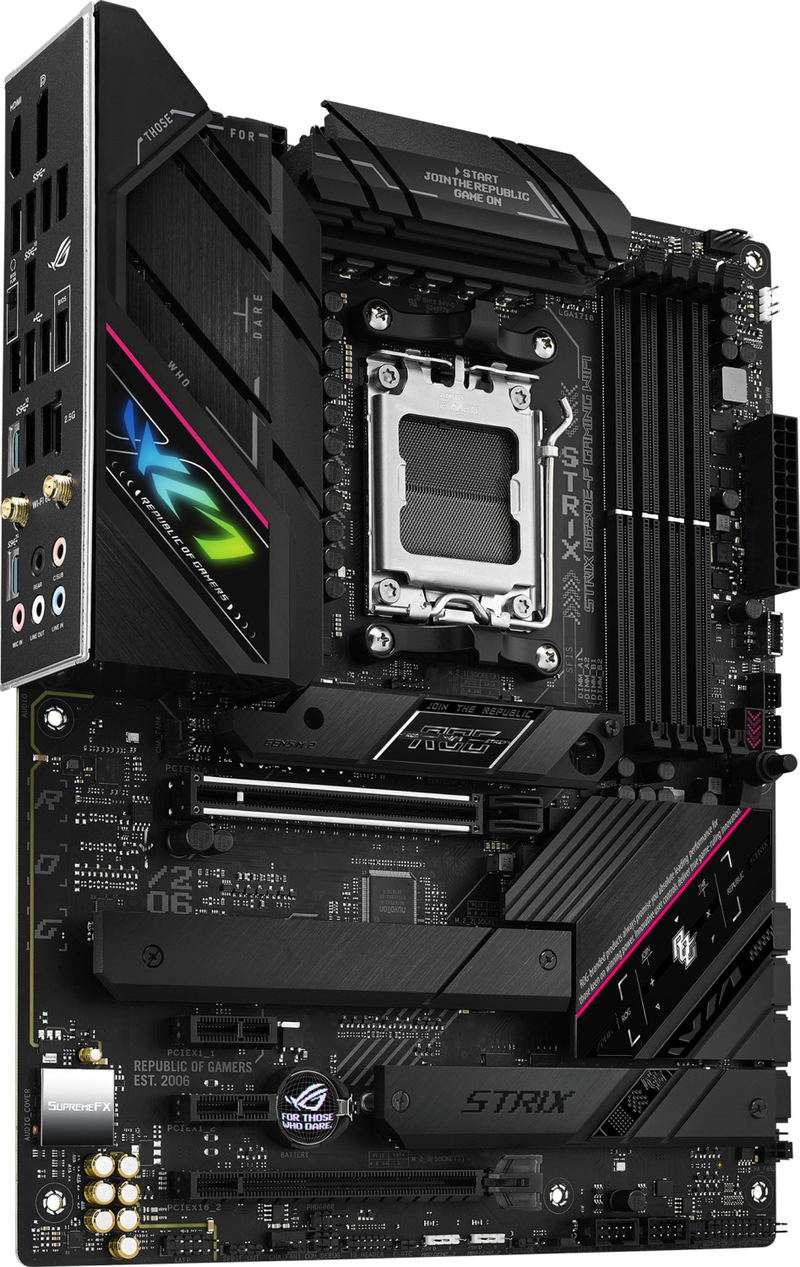

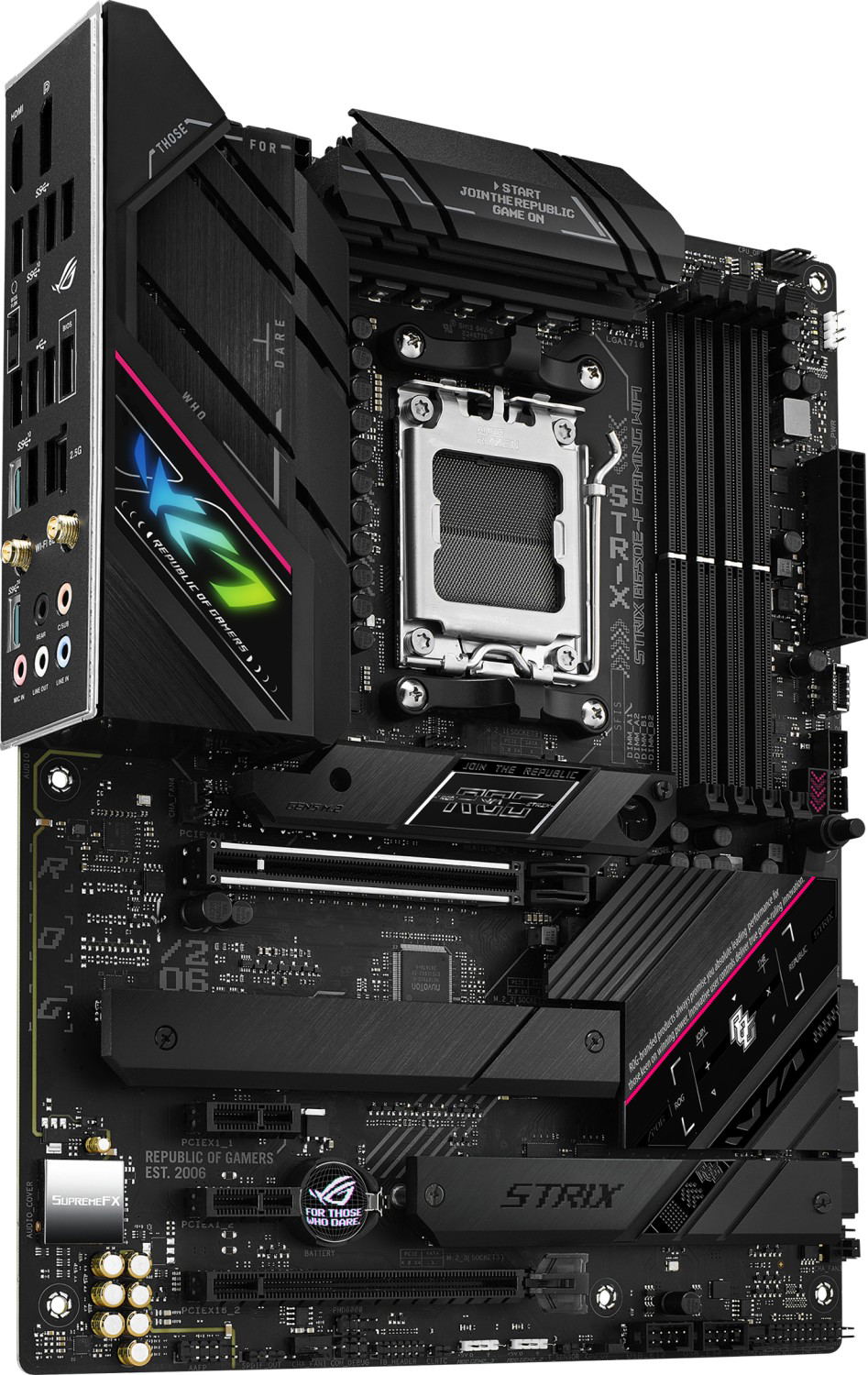

ASUS ROG Strix B650E-F Gaming WIFI image 1 ASUS ROG Strix B650E-F Gaming WIFI image 2 ASUS ROG Strix B650E-F Gaming WIFI image 3 ASUS ROG Strix B650E-F Gaming WIFI image 4 ASUS ROG Strix B650E-F Gaming WIFI image 5 ASUS ROG Strix B650E-F Gaming WIFI image 6 ASUS ROG Strix B650E-F Gaming WIFI image 7 ASUS ROG Strix B650E-F Gaming WIFI image 8
ASUS ROG Strix B650E-F Gaming WIFI thumbnail 1
ASUS ROG Strix B650E-F Gaming WIFI thumbnail 2
ASUS ROG Strix B650E-F Gaming WIFI thumbnail 3
ASUS ROG Strix B650E-F Gaming WIFI thumbnail 4
ASUS ROG Strix B650E-F Gaming WIFI thumbnail 5
ASUS ROG Strix B650E-F Gaming WIFI thumbnail 6
ASUS ROG Strix B650E-F Gaming WIFI thumbnail 7
ASUS ROG Strix B650E-F Gaming WIFI thumbnail 8

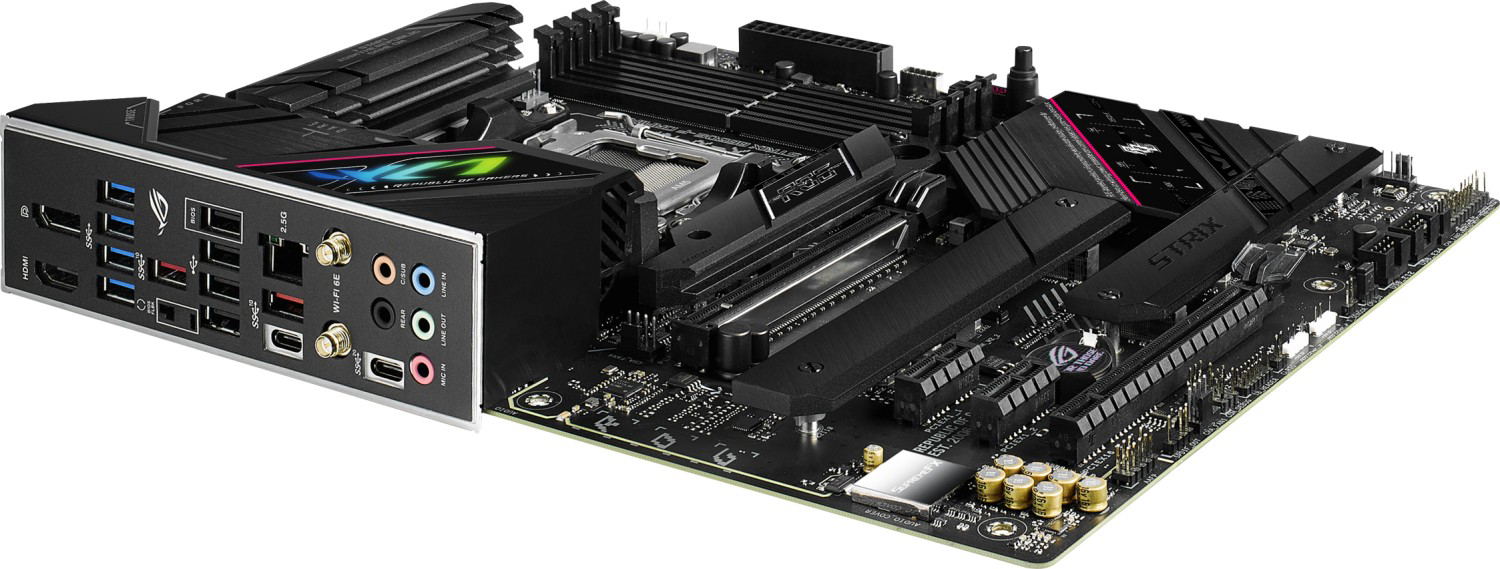

ASUS ROG Strix B650E-F Gaming WIFI

  • ASUS
  • Desktop (Desktop) 対応
USD 0.00

sold

スペック

Cooling
2x CPU fan 4-pin, 4x fan 4-pin
Audio
7.1 (Realtek ALC4080, ASUS SupremeFX), AMP
Base
AMD AM5
Buttons/switches
USB BIOS flashback (external)
チップセット
AMD B650E
Connectivity
USB-C 3.1
CPU
Ryzen 7000, without TDP limitation
Form Factor
ATX
Graphic
iGPU
MOSFETs CPU (VCORE)
12x 80A SiC659
MOSFETs SoC (VCCGT)
2x 80A SiC659
Power connections
1x 24-pin ATX, 1x 8-pin EPS12V, 1x 4-pin ATX12V
RAM Type
DDR5
VRM
14 virtual phases (12+2), 6 real phases (4+2)

商品説明

AMD B650E AM5 ATX motherboard with 12 + 2 + 1 power stages, DDR5, PCIe®5.0 NVMe®SSD support, a PCIe 5.0 x16 SafeSlot with Q release, USB 3.2 Gen 2x2 Type-C®port on the back, USB 3.2 Gen 2 Type-C®front panel port, WiFi 6E and Aura Sync RGB lighting

AMD Socket AM5Ready for AMD Ryzen™ 7000 Series Desktop Processors

Robust power solution:12 + 2 + 1 power stages with 8 + 4-pin ProCool power connectors, high-quality alloy coils and long-lasting capacitors to support multi-core processors

Optimized cooling design:Solid VRM heatsinks with strategically cut airflow channels and highly conductive thermal pads

Next-Gen M.2 Support:One PCIe® 5.0 M.2 slot and two PCIe 4.0 M.2 slots, all with heatsinks to maximize performance

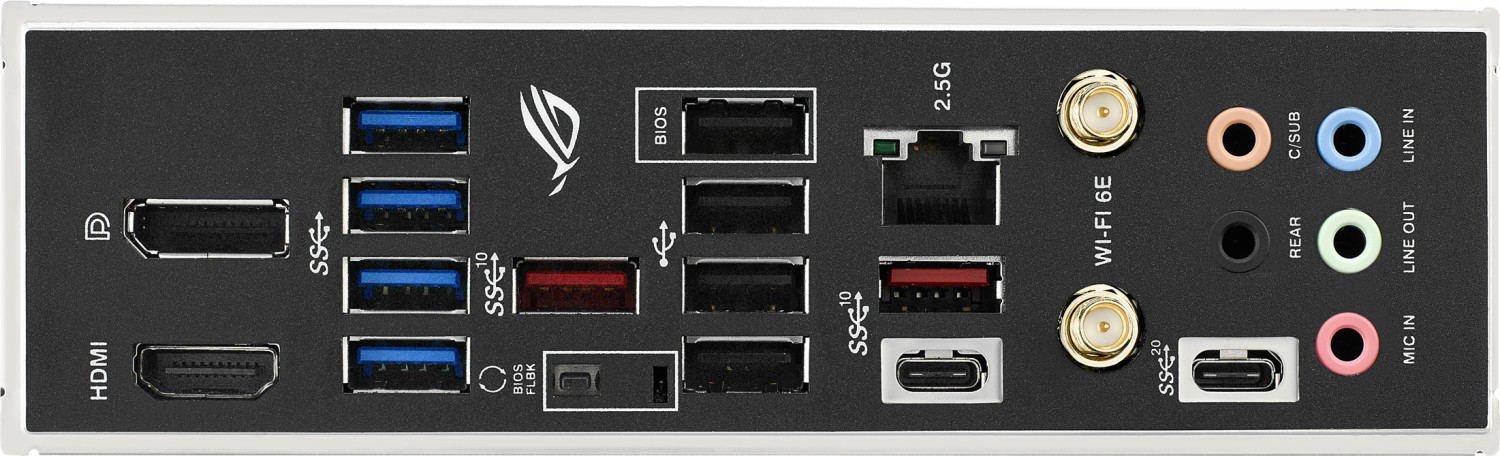

Advanced connectivity:One USB 3.2 Gen 2x2 Type-C® and eleven additional USB ports on the back, USB 3.2 Gen 2 Type-C® front panel connector, HDMI® 2.1, DisplayPort™ 1.4 and a PCIe 5.0 x16 SafeSlot

Powerful networking:On-board WiFi 6E (802.11ax), Bluetooth® 5.2 and Intel® 2.5G Ethernet with ASUS LANGuard

Intelligent Control:ASUS-exclusive two-way AI noise cancellation and AI networking

Immersive gaming audio:ALC4080 with Savitech SV3H712 amplifier, together with DTS® Sound Unbound and Sonic Studio III

Unrivaled personalization:ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers

DIY-friendly design:PCIe® slot Q-release, M.2 Q-latch, pre-assembled I/O shield and BIOS FlashBack™ button

Intuitive Software:User-friendly UEFI BIOS Dashboard, Armory Crate RGB and Device Manager, and a 60-day AIDA64 Extreme trial
