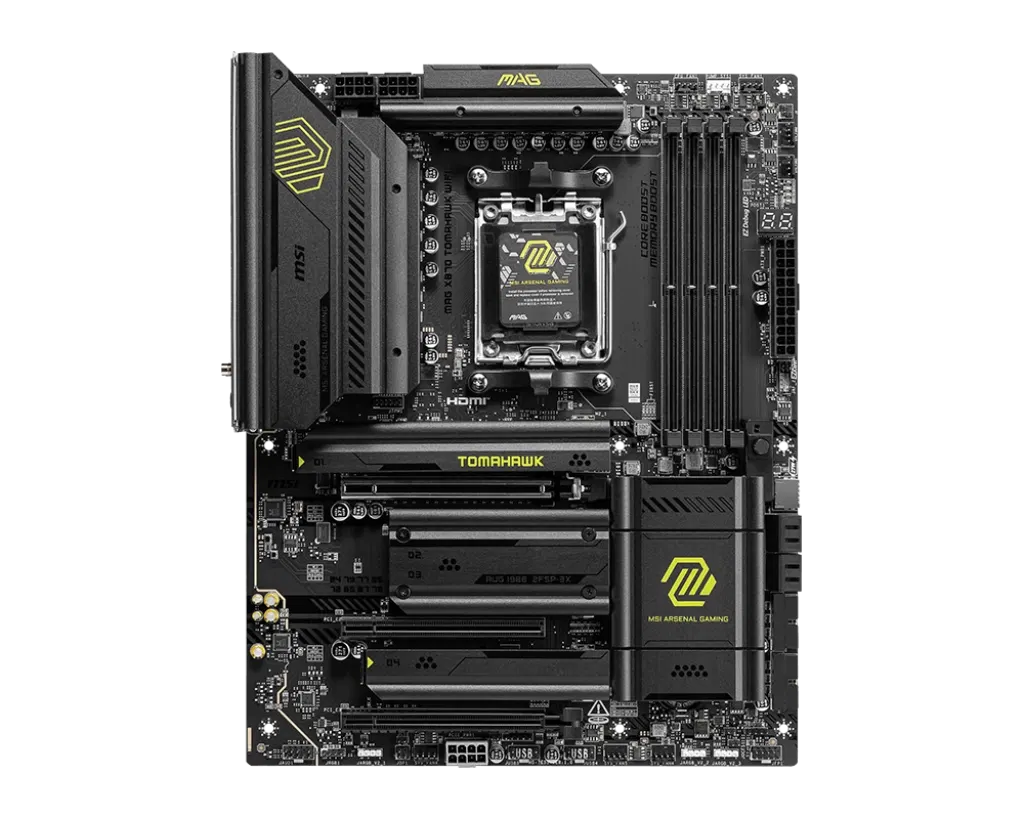

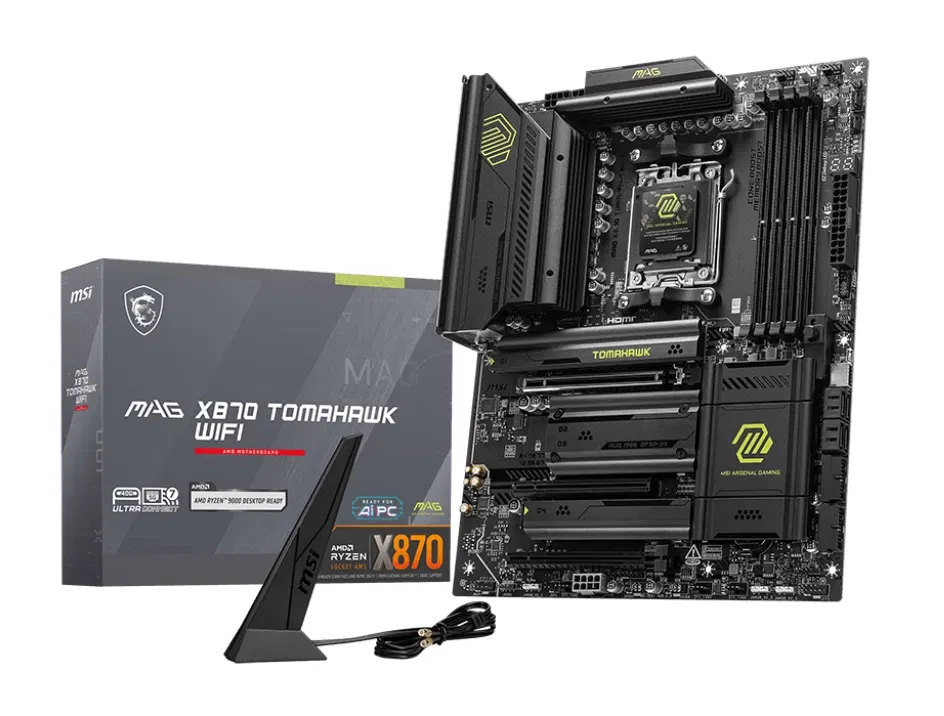

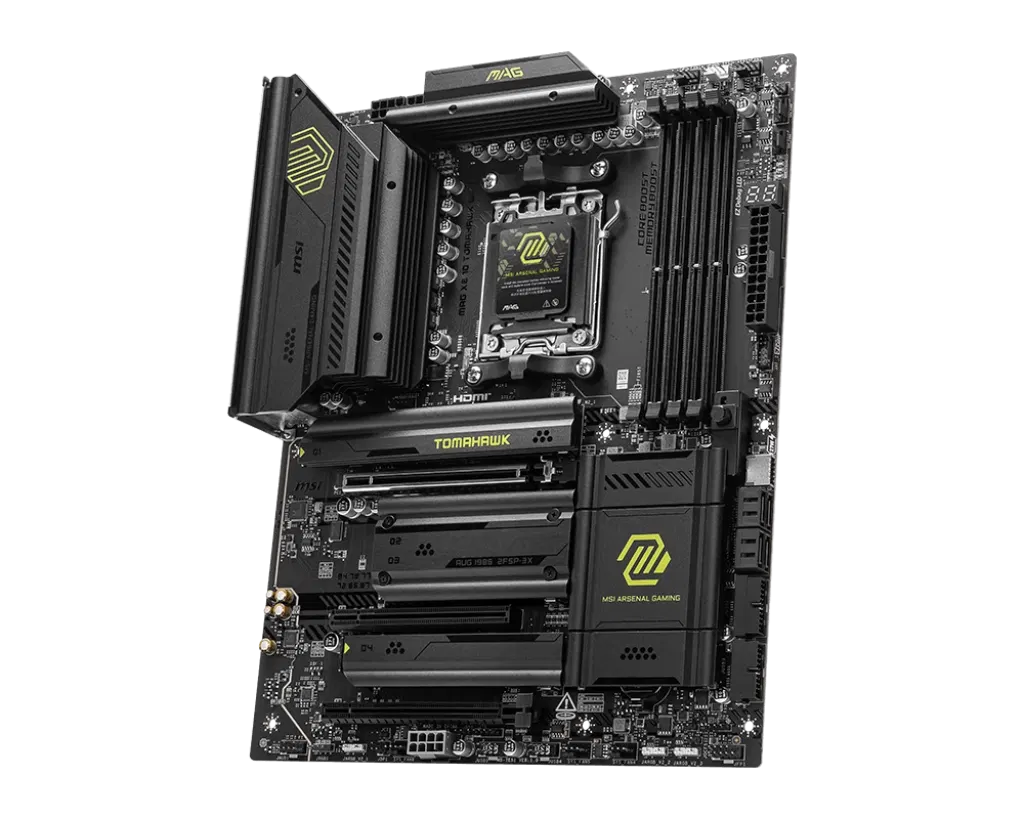

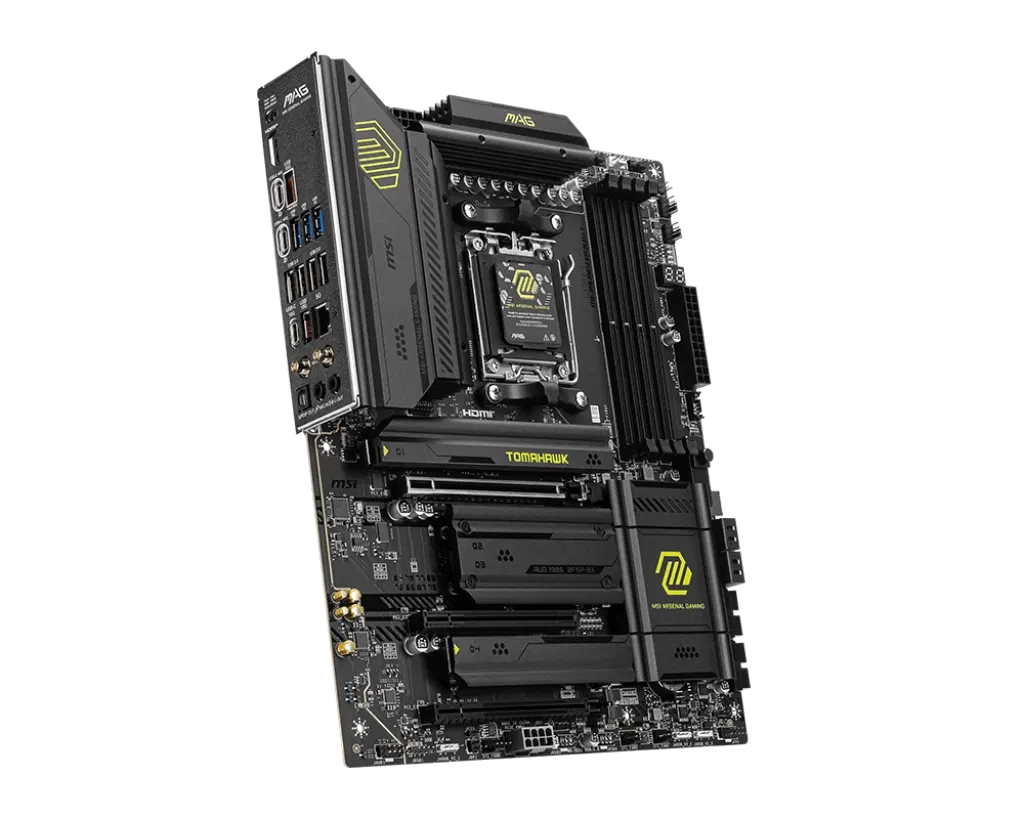

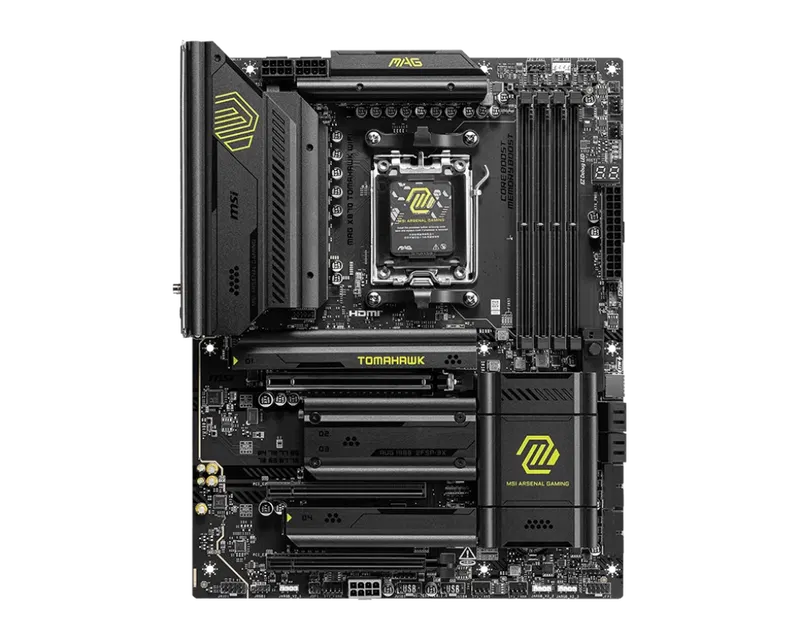

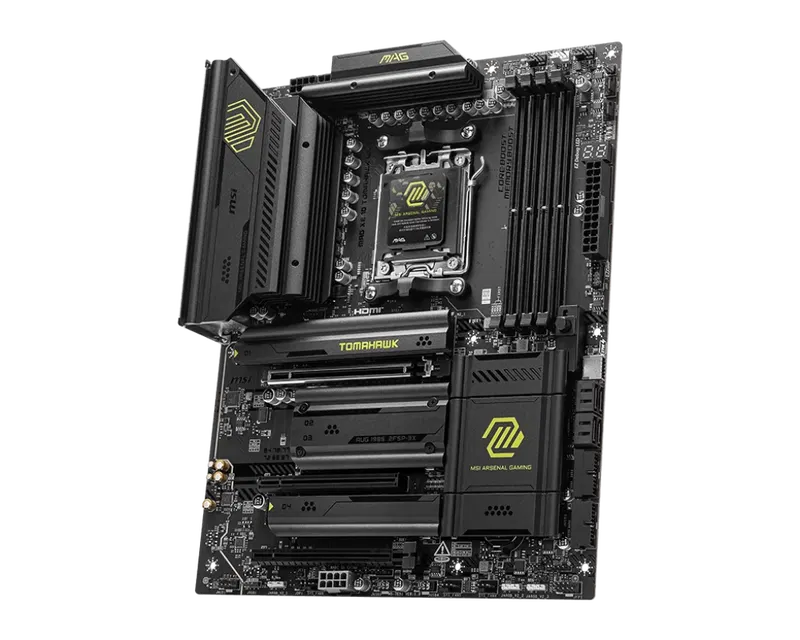

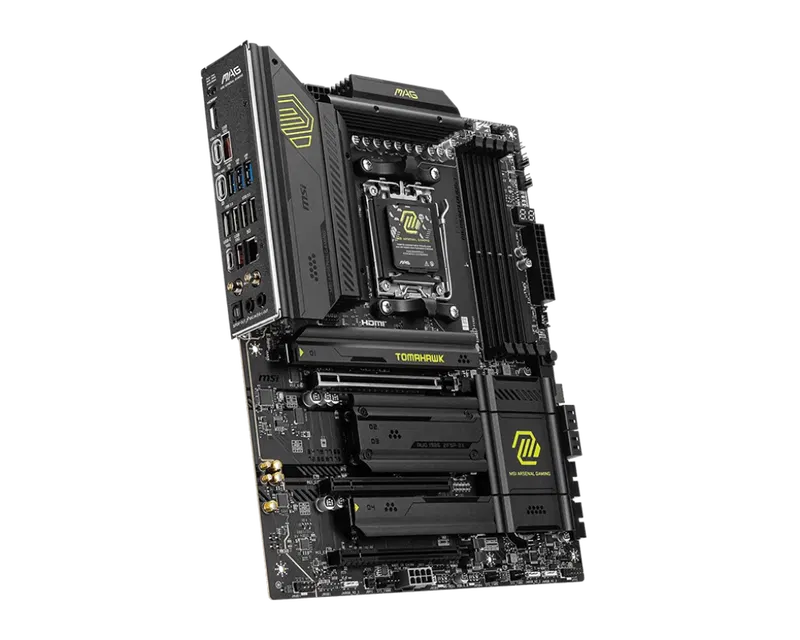

MSI MAG X870 TOMAHAWK WIFI

MAG X870 TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.

The MSI ARSENAL GAMING (MAG) series is engineered to give gamers the edge they need to dominate on the virtual battlefield. Inspired by the rugged durability and unwavering reliability of military-grade equipment, the MAG series is built to provide an unwavering defense in every gaming scenario.

However, MAG isn't just about performance; it's a design language that conveys ruggedness and toughness, embodying the very essence of the MAG style. For gamers who are determined to dominate their digital battlegrounds, the MAG series is here to stand with you, establishing the ultimate defense.

EZ Installation
EZ M.2 Clip II
MSI's EZ M.2 CLIP II makes SSD installation seamless. Insert the SSD into the M.2 slot and press it down to lock it in place with the clip. Flicking the clip outward lets you remove the SSD. Use the EZ M.2 Clip II remover tool to detach or reposition the clip on the motherboard.

EZ PCIe Release
An easy-to-access physical button release mechanism helps to remove any PCIe card with a single tap, making it easier to upgrade to a new GPU or other compatible device.

Flash BIOS
Flash the BIOS with only a connected power supply and a flash drive. No CPU or memory required.

Clear CMOS
Restore the BIOS to its default settings with the push of a button.

Ultra Performance
Power Solution
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. By combining dual power connectors and 80A Smart Power Stage, the MAG X870 TOMAHAWK WIFI is ready for high-end processors and hardware.

Optimized PCB Design
The 8-layer PCB design features 2 oz of thickened copper and has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

EZ OC Tuning
- MSI's Performance Preset allows you to easily boost performance by setting the power limitations.
- The Performance Switch combines AMD's Precision Boost Overdrive (PBO) technology with MSI's own overlocking settings for higher CPU performance.
- MSI PBO Thermal Point settings provide maximum CPU temperature levels, allowing it to operate at lower voltage but maintain the same performance.
- Config TDP is designed to provide an ECO Mode (65W) or a different TDP (PPT/TDC/EDC) setting for advanced users.

DDR5 Memory Support
High-performance DDR5 memory works with a dedicated SMT welding process and MSI Memory Boost technology to deliver exceptional performance.

Transient Voltage Suppressors (TVS)MSI MAG X870 TOMAHAWK WIFI - Play-Asia.com
Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.

Wi-Fi 7
Wi-Fi 7 (802.11be) introduces higher speeds, wider channels, improved efficiency, and reduced latency over Wi-Fi 6 (802.11ax), with maximum speeds of up to 5.8 Gb/s. Utilizing 320 MHz on the 6 GHz band ensures reliability during simultaneous transmissions at max speeds and the 4096 QAM boosts peak transmission rates and network capacity. Multi-Link Operation enables devices to simultaneously send and receive data across several frequency bands and channels to meet traffic demands and the growing number of wireless devices.

FROZR Design
FROZR Guard
The enhanced thermal design, which includes M.2 heat sinks, maintains optimal performance during extensive workloads.

FROZR Sync
Connect and synchronize MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

FROZR Control
The Cooling Wizard serves as a comprehensive solution for managing fan settings. It ensures superior cooling performance and noise reduction for your gaming PC, offering compatibility with PWM/DC fans and pumps, customizable options, and intuitive temperature monitoring for optimal operation with one click.
Expansion

PCIe 5.0
Doubling the speed of the previous generation, the PCIe 5.0 x16 interface can reach 128 GB/s.

SMT PCIe 5.0 Slot
The advanced SMT (Surface Mount Technology) PCIe slot diminishes interference and electrical noise to fully support the PCI-E 5.0 signal.

Steel Armor II
Compared to the previous generation, Steel Armor II's weight endurance has increased by 21%, ensuring excellent signal transmission quality.
Experience

Audio Boost 5
The integrated audio system features an ALC4080 processor that immerses you in crystal clear sound using a dedicated headphone amplifier, isolated audio signal, and de-pop protection.

Mystic Light
Customize the RGB lighting with a variety of effects and sync them with Mystic Light compatible keyboards, mice, monitors, and other peripherals.

MSI Center
MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboard features.

AIDA64 Extreme
The AIDA64 Extreme application allows for system information, diagnostics, and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML. A 60-day subscription is included.
