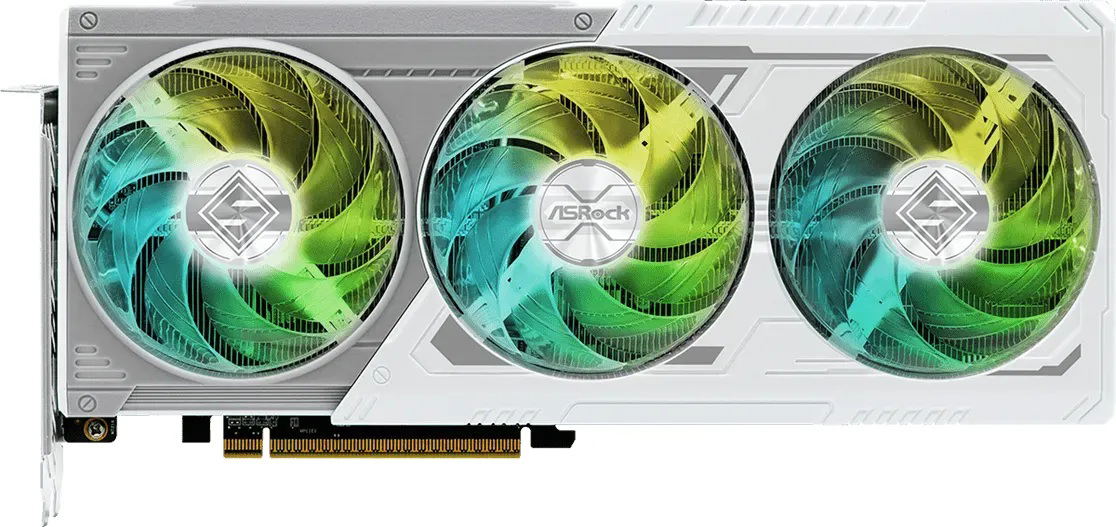

ASRock Radeon RX 9060 XT Steel Legend 16GB OC, RX9060XT SL 16GO, 16GB GDDR6, HDMI, 2x DP

Polychrome SYNC
Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

LED Switch & ARGB Header

LED Switch
You can quickly and easily switch on/off the ARGB LEDs that are equipped with not only your graphics card but also the connected ARGB devices.
ARGB Header
With the ARGB Header, it can connect extra ARGB strips/devices to make the lighting effects more rich and vivid.

Triple Fan Design
Triple fan design helps to optimize system cooling to reduce the operating temperature.

Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

Striped Ring Fan
Designed For Enhanced Airflow
ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.

0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Air Deflecting Fin
Guide Airflow to Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Nickel-plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

SPECIFICATION

Graphics Engine

- AMD Radeon™ RX 9060 XT

Bus Standard

- PCI® Express 5.0 x16

DirectX

- 12 Ultimate

OpenGL

- 4.6

Memory

- 16GB GDDR6

Engine Clock

- Boost Clock*: Up to 3320 MHz

- Game Clock**: 2780 MHz

*Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

**Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

- 2048

Memory Clock

- 20 Gbps

Memory Interface

- 128-bit

Resolution

- Digital Max Resolution: 7680 x 4320

Interface

- 2 x DisplayPort 2.1a

- 1 x HDMI 2.1b

HDCP

- Yes

Multi-view

- 3

Recommended PSU

- 550W

Power Connector

- 1x 8-pin

Accessories

- 1x Quick Installation Guide

Dimensions

- 298 x 131 x 51 mm, 2.55-slot
