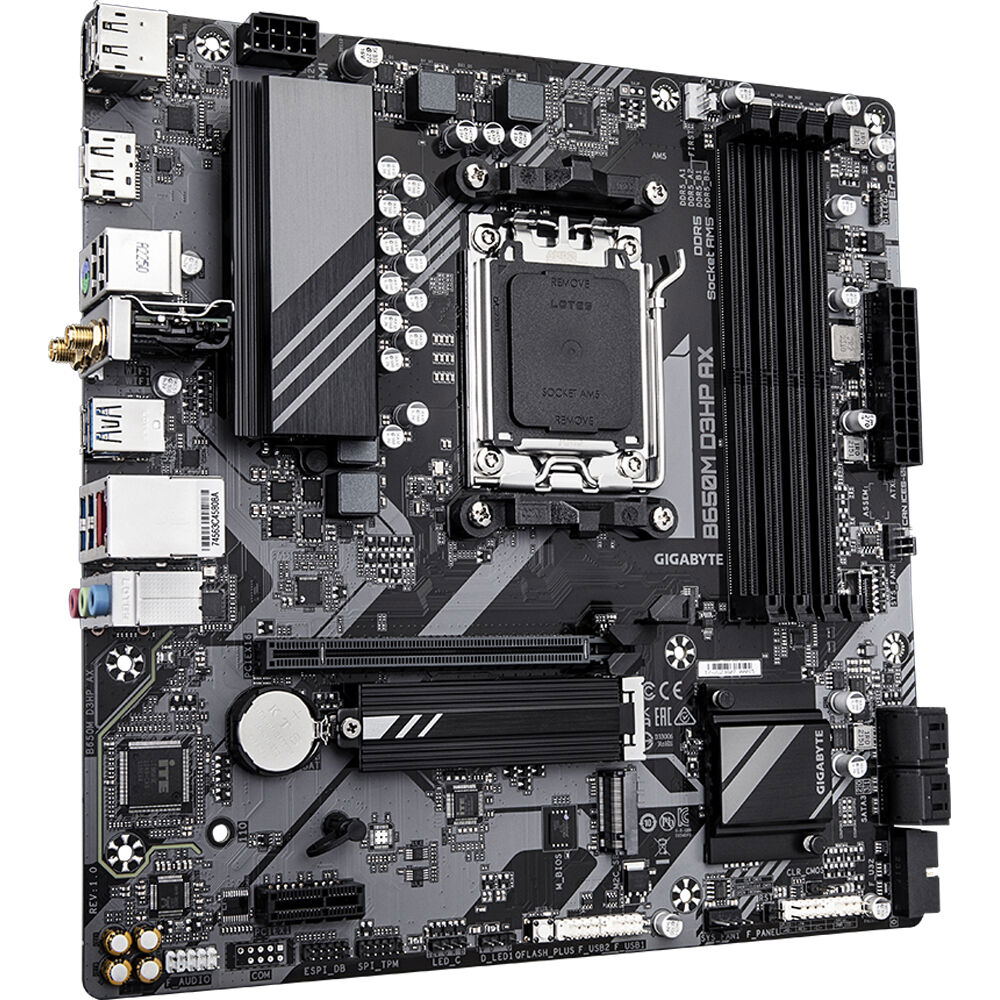

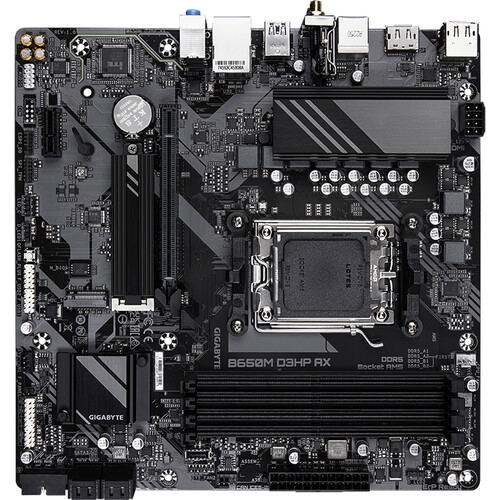

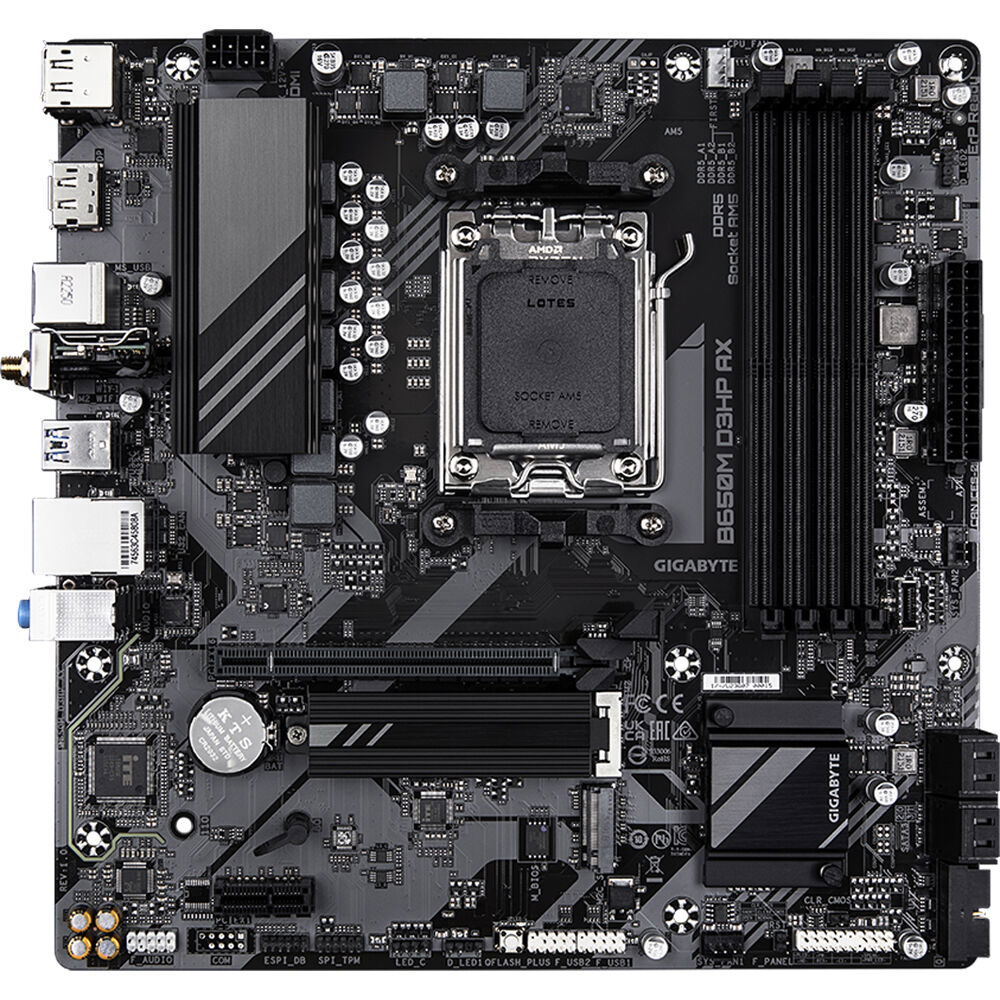

GIGABYTE B650M D3HP AX

  • Gigabyte
  • Serasi dengan Desktop (Desktop)
USD 0.00

sold

Ciri-ciri Produk

  • X3D Turbo Mode to unleash new era gaming performance
  • AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital 5+2+2 phases VRM solution
  • Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support
  • EZ-Latch : PCIe x16 Slot with Quick Release Design
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
  • Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
  • Fast Networking : GbE LAN
  • Extended Connectivity : 2*DP, HDMI

Spesifikasi

Cooling
1x CPU fan 4-pin PWM, 2x fan 4-pin PWM
Audio
Realtek ALC897
BIOS
1x 32MB (256MB)
Buttons/switches
USB BIOS Flashback/​Q-Flash Plus (internal)
Chipset
AMD B650
Connectivity
Wi-Fi 6E
CPU
Ryzen 7000 , Ryzen 8000G , Ryzen 9000 , CPU compat
External connections
2x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 1x
Form Factor
mATX
Graphic
iGPU
Header lighting
2x 3-pin ARGB (+5V/​DATA/​GND, max. 5A), 1x 4-pin
Internal connections
1x USB 3.0 Header Key-A (5Gb/​s, 1x USB-C), 1x USB
MOSFETs CPU (VCORE)
5x 46A 4C10N/10x 4C06N (high/low side)
MOSFETs SoC (VCCGT)
2x 46A 4C10N/4x 4C06N (high/low side)
Power connections
1x 24-pin ATX, 1x 8-pin EPS12V
RAM Type
DDR5
Socket
LGA 1718
VRM
5+2, 7 virtual CPU phases (5+2), 7 real CPU phases
Warranty
3 Year(s)

Penerangan Produk

Gigabyte B650M D3HP AX
Begin your next build with confidence using the B650M D3HP AX AM5 Micro-ATX Motherboard from Gigabyte. The micro-ATX form factor works with smaller builds or leaves more room in larger builds. Either way, the B650M D3HP AX offers versatile compatibility for new and experienced builders alike.

The AMD B650 chipset and AM5 socket accepts AMD Ryzen 7000 series processors. Four dual-channel DDR5 RAM slots support up to 192GB of 7600 MT/s memory for robust multitasking. Store documents, applications, and more with four SATA III and two M.2 interfaces for drives. The PCIe 4.0 x16 slot supports an external GPU and there is an additional PCIe 3.0 x1 slot as well. Connect to the internet wirelessly using Wi-Fi 6E or with a wire using the 2.5 GbE Ethernet port. Connect to other devices using Bluetooth 5.3. The Realtek 7.1-channel HD audio provides stellar sound for connected devices.

Rear USB Connectivity
There are several ways to connect accessories and peripherals to this motherboard using the rear panel. A USB-C 3.2 Gen 1 port and three USB-A 3.2 Gen 1 ports offer up to 5 Gb/s transfer speeds perfect for higher end drives and accessories. Two USB-A 2.0 ports and a PS/2 combo jack can be used for mice, keyboards, and more.

Display Connectivity
Two DisplayPort outputs support resolutions up to 3840 x 2160 at 144 Hz. A single HDMI port supports up to 4096 x 2160 resolution at 60 Hz.

Thermal Improvements
Smart Fan 6 ensures your computer maintains its performance while staying cool thanks to its unique cooling features. Users can define fan curves for multiple fan and pump headers based on temperature sensors across the board via the intuitive user interface.
