ASUS ROG Strix, ROG-STRIX-1000P Platinum, ROG-STRIX-1000P-GAMING, 1000W ATX 3.1

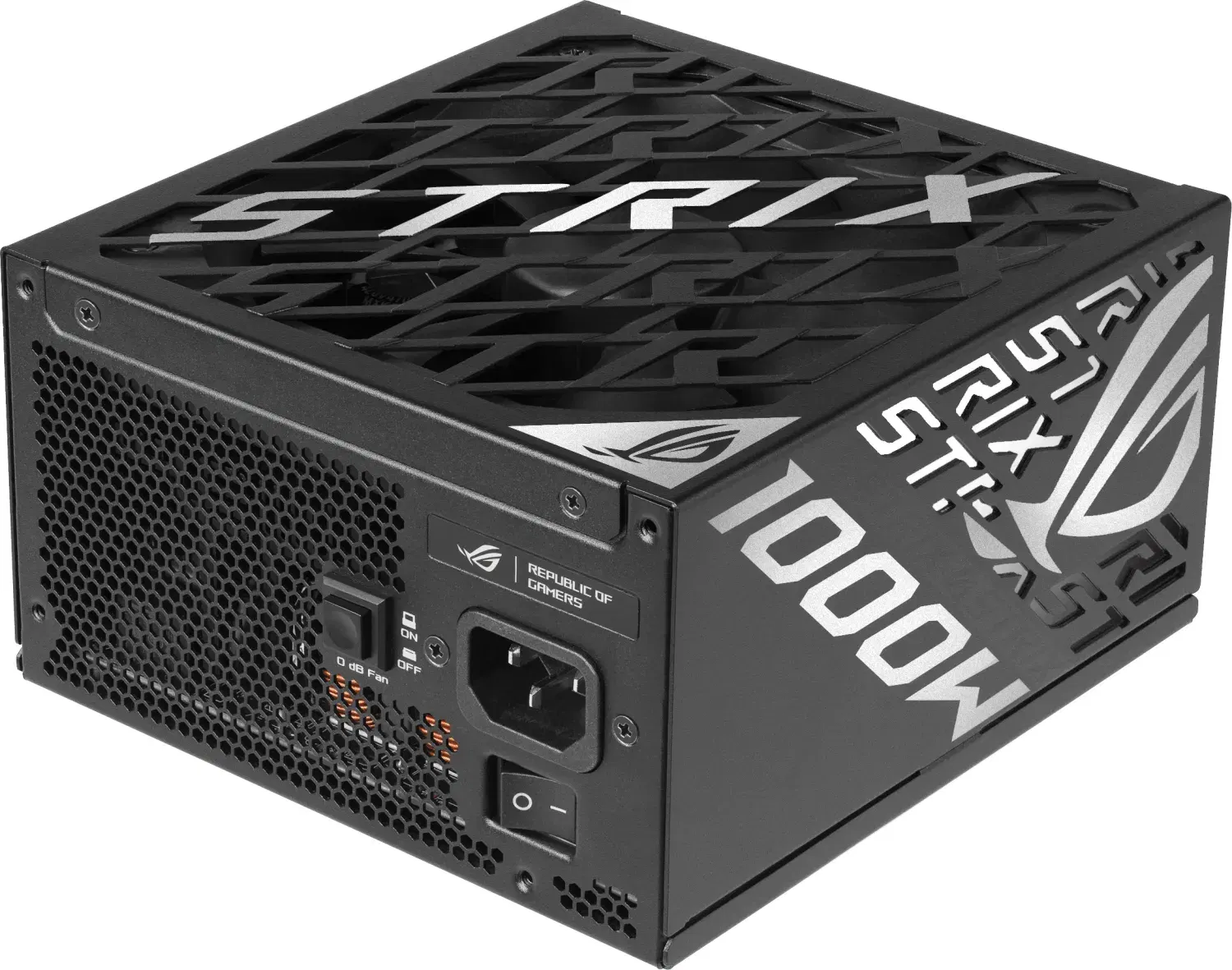

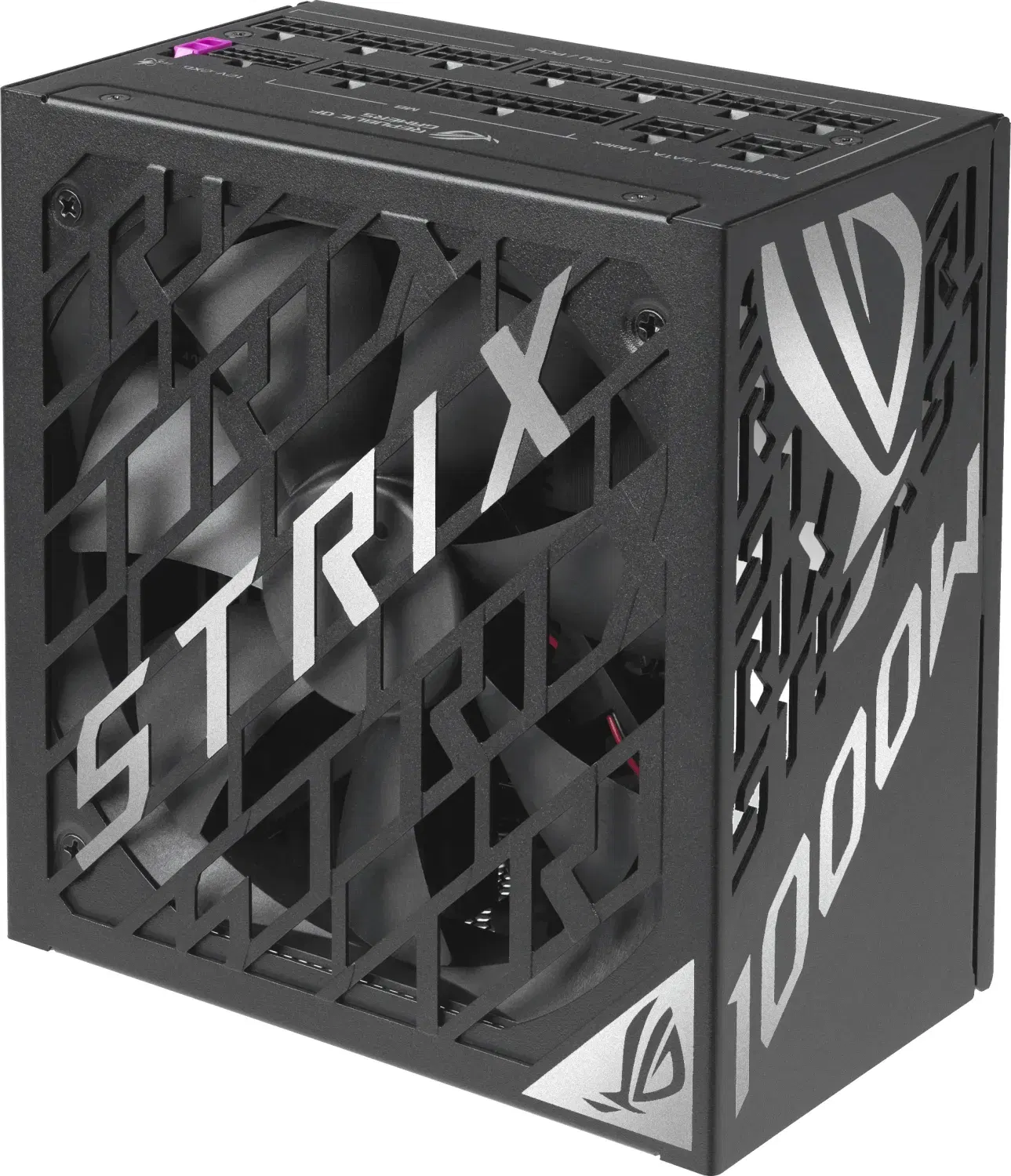

ROG Strix 1000W Platinum

ROG Strix 1000W Platinum White Edition is a cool and quiet PSU with stable power delivery, engineered for efficiency with GaN MOSFET and “GPU-FIRST” intelligent voltage stabilizer in striking style.

Superior Stability.Next-Level Efficiency

The ROG Strix Platinum White Edition PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring next-gen GaN MOSFET for superior power efficiency. The “GPU-FIRST” voltage sensing with patented-intelligent voltage stabilizer ensures a steady flow of power to the graphics card. Plus, it is ready for latest hardwares with ATX 3.1 compliance and a native 12V-2x6 connector. The ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.

ROG Strix 1000W PlatinumTech Specs:
ASUS ROG Strix, ROG-STRIX-1000P Platinum, ROG-STRIX-1000P-GAMING, 1000W ATX 3.1 - Play-Asia.com
Intel Form Factor - ATX12V
PFC Type - Active PFC
ATX Standard - ATX 3.1
Efficiency - 80Plus Platinum
MTBF -> 120,000 hrs @ 25°C
Protection Features - OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials - ROHS
AC Input Range - 100-240Vac
DC Output Voltage - +3.3V +5V +12V -12V +5Vsb
Maximum Load - 25A 25A 83.3A 0.3A 3A
Combined Load - 130W 130W 1000W 3.6W 15W
Total Output - 1000W

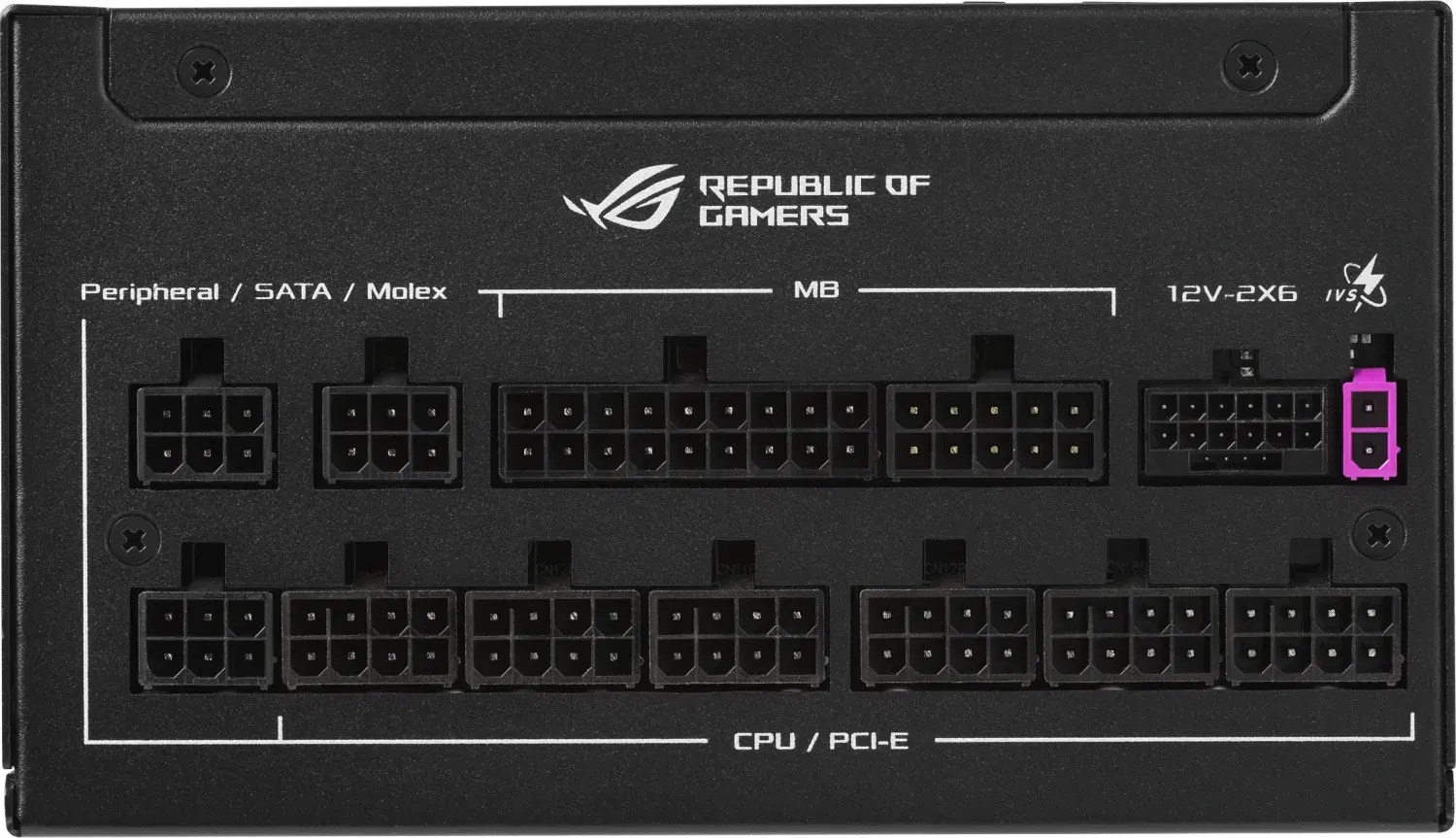

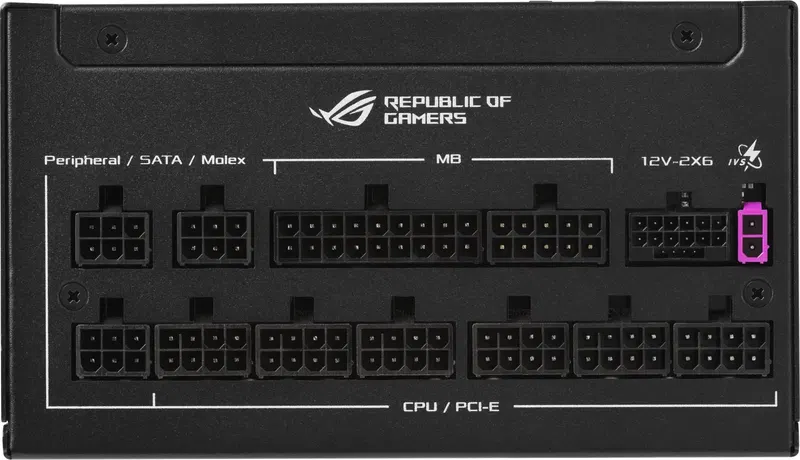

Cable Connectors:
- MB 24/20-pin x 1
- CPU 4+4-pin x 2
- PCI-E 16-pin x 1(both PSU & component side)
- PCI-E 6+2-pin x 4
- SATA x 6
- PERIPHERAL x 3
