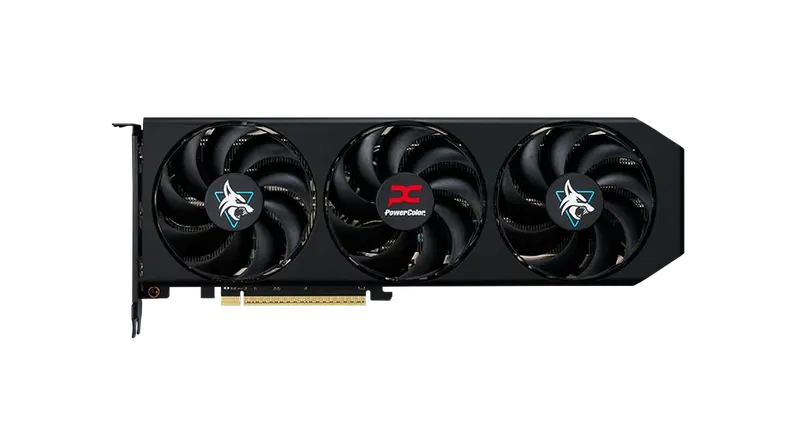

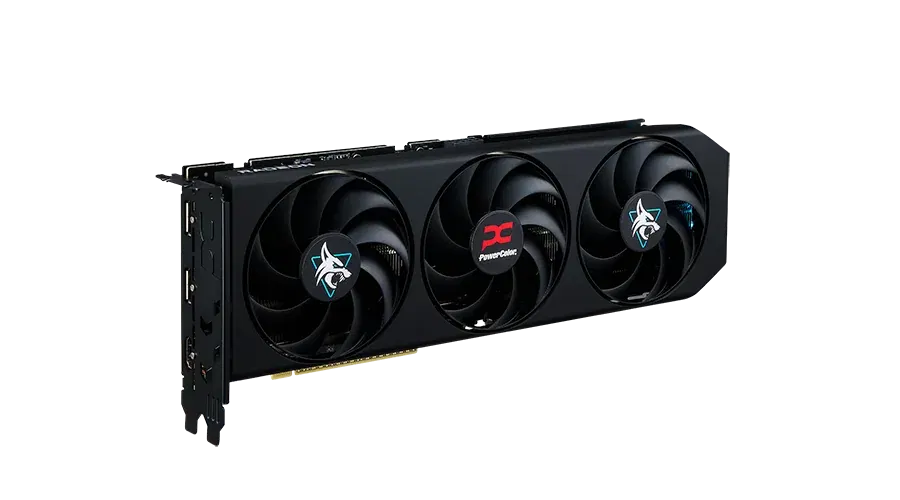

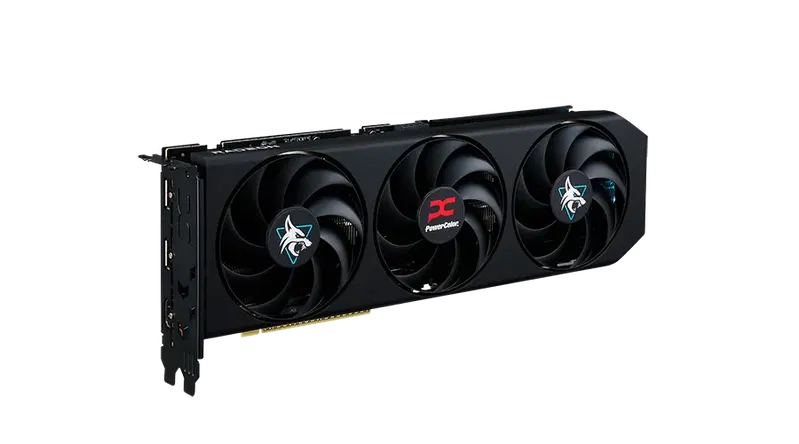

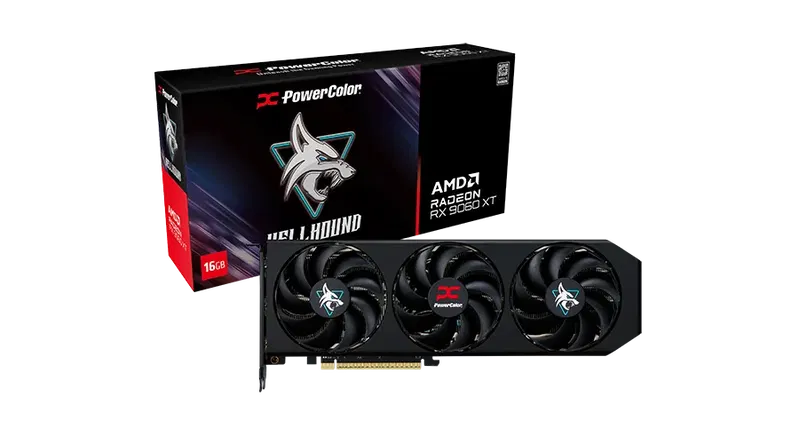

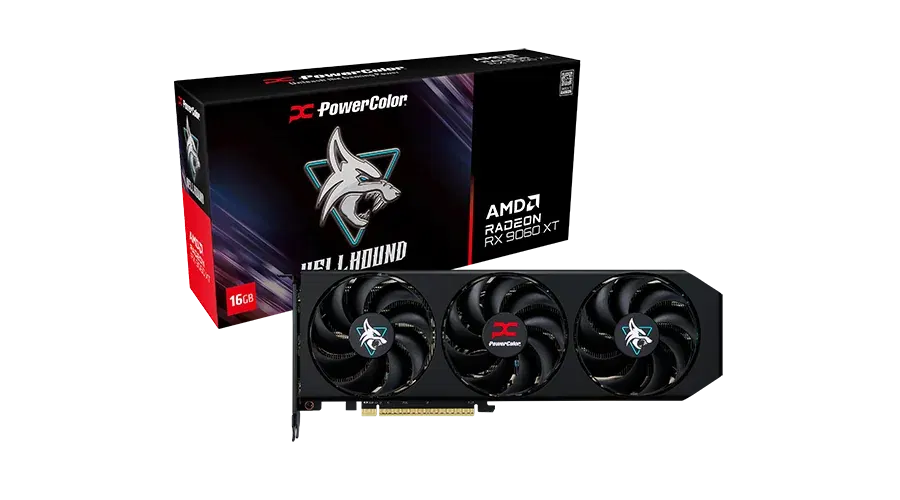

PowerColor Hellhound AMD Radeon RX 9060 XT, 16GB GDDR6, HDMI, 2x DP

Hellhound, Unmatched Reliability for Your Gaming Experience.

Bold in strength yet sleek in design, it features a subtle glow — Artic Blue — adding personality to your setup.

High-Efficiency DrMOS Power Module

Reduce Power Loss during transmission, Ensure Longer-Lasting Performance and Reliability.

Hellhound features a 5+1 phase power design, along with a dedicated 2+1 phase memory power supply. It is equipped with conductive polymer capacitors, offering thermal stability and durability.

Premium-Quality PCB

Enhanced Signal Stability for Uninterrupted Performance

Crafted with 10-layer high-thermal conductivity material with a 2oz power layer, ensure better signal stability during high-frequency transmission.

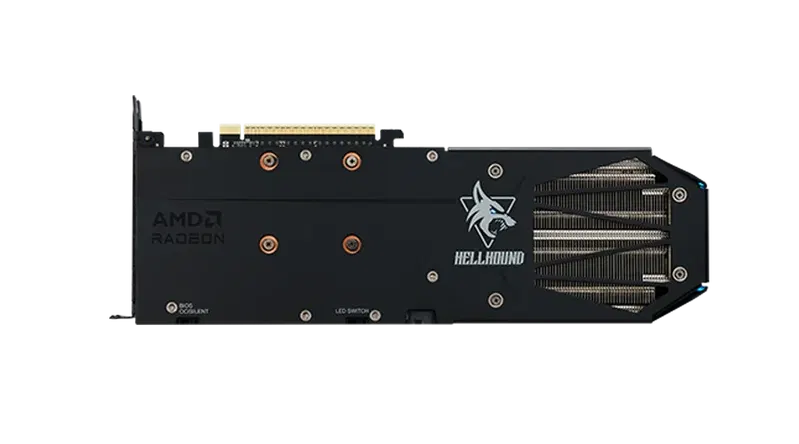

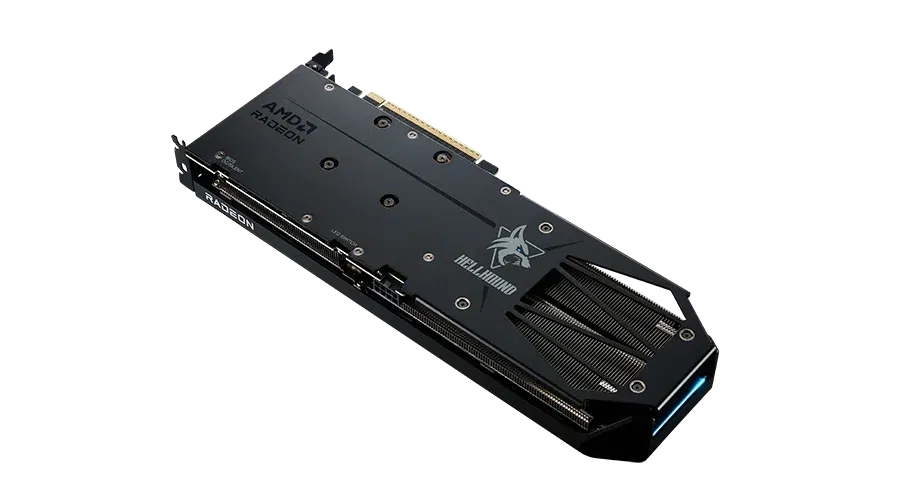

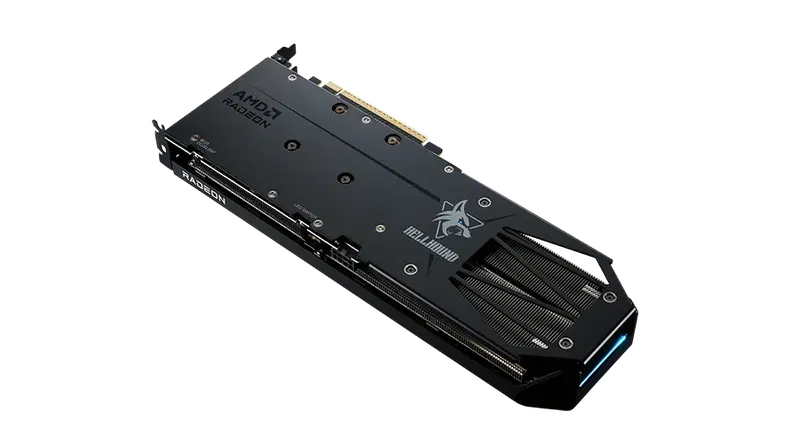

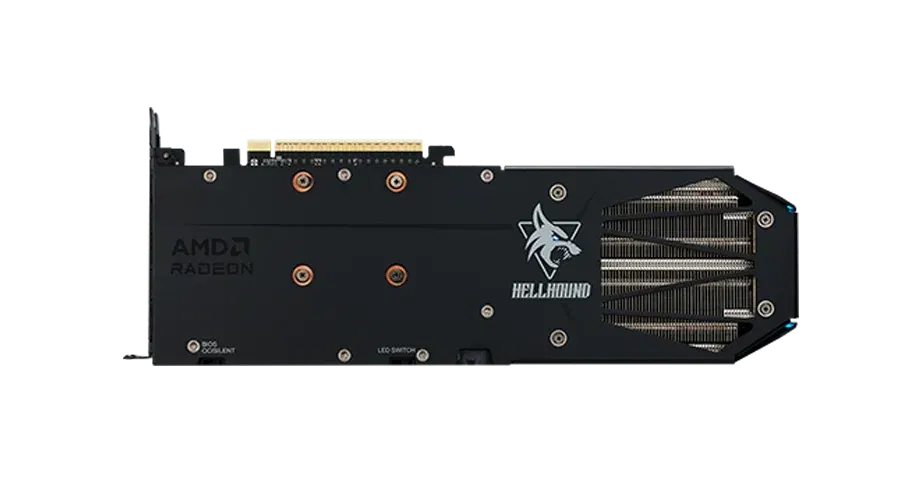

Reinforced Metal Backplate

Durable metal backplate reinforces support to prevent PCB deformation.

Artic Blue Glow

Sleek and elegant with Blue LED lighting, easily controlled by a physical switch.

Dual BIOS

Switch between OC (Performance) and Silent modes

Adjustable fan speed to suit your needs while maintaining peak performance.

Intelligent Fan Control

Precise Temperature Sensor

Fan cooling ensures GPU to operate within optimal temperature. The fans kick in at 60°C and stop below 50°C.

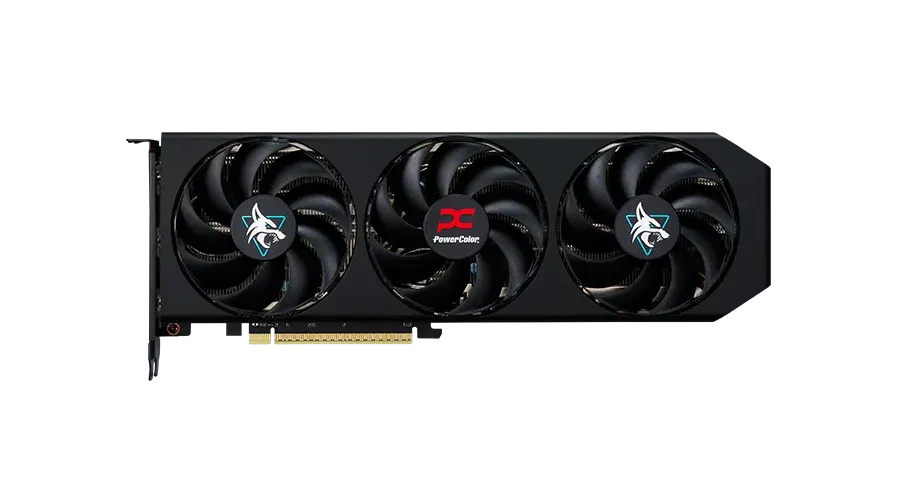

Exclusive Ring Blade Design

Fast and Silent.

Designed with 9 blades, enhancing fan speed and airflow while keeping noise level to the minimum.

Dual Ball Bearings

Durable and Reliable

Premium Japanese dual ball bearings to reduce rotational friction, and extend fan lifespan.

Vertical Heatsink

Designed with larger heat sink and precisely spaced fins for better heat spread and dispersion.

Honeywell PTM7950

Seamless phase-change

Ensures micro gaps between the GPU and heatsink are rapidly filled during high-load operations, significantly enhancing thermal efficiency.

Optimum Heatpipe Arrangement

Rapid & Efficient Heat Transfer

Four 6φ nickel-plated copper heatpipes are aligned above the PCB, optimizing heat transfer from the GPU and VRAM to the cooling array.

Direct Contact

Featuring a smooth nickel-plated copper base that conducts and distributes heat for efficient GPU and memory cooling.

SPECIFICATION

Graphics Engine

AMD Radeon™ RX 9060 XT

Model Name

RX9060XT 16G-L/OC

Series

Hellhound

Stream Processor

2048 Units

Video Memory

16GB GDDR6

Memory Speed

20.0 Gbps

Memory Interface

128-bit

Engine Clock(OC)

up to 2740MHz(Game)

up to 3310MHz(Boost)

Engine Clock(STD/Silent)

up to 2620MHz(Game)

up to 3230MHz(Boost)

Bus Standard

PCIE 5.0 x16

Standard Display Connectors

1 x HDMI 2.1b，2 x DisplayPort 2.1a
