MSI PRO Z890-A WIFI

MPG Z890 EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power and this is the best white theme Z890 ATX motherboard for Intel Core Ultra processors.

Designed to help simplify builds, MSI's EZ technology makes it easy to install one M.2 PCIe 5.0 and three PCIe 4.0 SSDs to store your applications and important files. There are also four SATA III connectors available alongside four DDR5 DIMM slots. With one PCIe 5.0 x16 slot and two PCIe 4.0 x16/x4 slots, you can install powerful graphics cards and other compatible expansions.

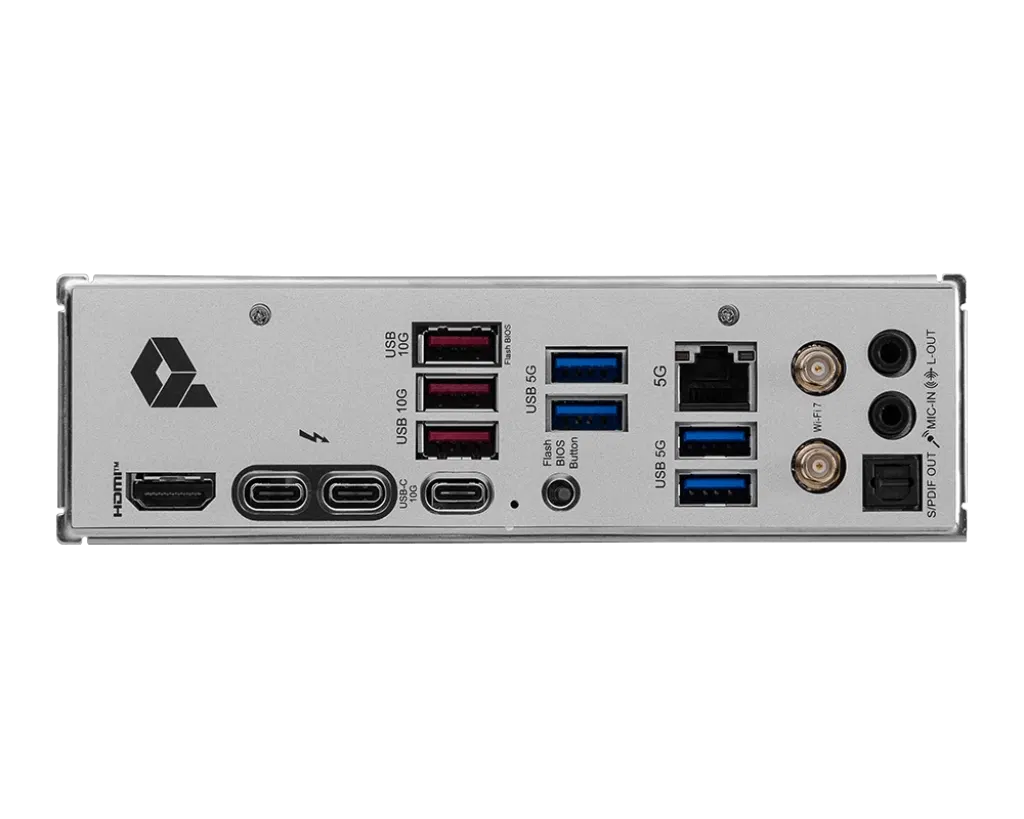

The rear panel features two Thunderbolt 4 ports that can transfer up to 40 Gb/s with compatible devices or connect a USB-C compatible 8K display. The one USB-C and three USB-A ports work with 10 Gb/s devices. An internal header allows you to connect a front panel 20 Gb/s USB-C port. You may use the four USB-A 3.2 Gen 1 ports with 5 Gb/s peripherals. Built-in Wi-Fi 7 (802.11be) support and a 5 Gb/s Ethernet port provide you with connections to compatible network devices for smooth video streaming and fast file transfers.

One Finger
EZ M.2 Installation
MSI's EZ M.2 Shield Frozr II and EZ M.2 CLIP II make M.2 installation seamless. Insert the SSD card into the slot and press it down to lock it in place with the clip. As you unfasten the SSD, flick the clip outwards and you'll be able to remove the SSD. The process is smooth and you don't need to use tools like before. One finger can give you the perfect DIY experience.

EZ M.2 CLIP II Remover
Introducing MSI's EZ M.2 CLIP II remover, a handle tool designed for simply switching or repositioning the EZ M.2 CLIP II on your motherboard. This tool allows users to detach the EZ M.2 CLIP II from the motherboard and reattach it to any desired M.2 slot. It is included in the accessory kit that comes with MSI motherboards.

EZ GPU Installation & EZ PCIe Release
An easy-to-access physical button release mechanism that can help remove any PCIe card with a single tap, making it much easier to upgrade to a new GPU or other compatible device, streamlining the entire process and enhancing user experience.

Flash BIOS Button
Flash the BIOS with only a connected power supply by following a few steps. CPU and memory are not required.

One Hand
Pre-Installed I/O Shield
The pre-installed I/O shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.

EZ Mounting
MSI motherboard circuitry ensures the case standoff keep-out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from scratching or damaging the motherboard.

One Step
EZ Antenna
MSI EZ Antenna makes the process effortless by simply attaching fasteners to the motherboard without rotation.

EZ Conn-Design
MSI's EZ Conn header (JAF_2) allows users to easily connect MSI EZ series fans (7-pin) or MSI liquid cooling (11-pin). If you don't have the above products, they also provide a 1-to-3 EZ Conn-Cable, enabling you to connect an ARGB light, system fan, and USB device.

EZ Front Panel Cable
This cable takes care of the tedious part of the build process, makes motherboard front panel connections quickly and accurately.

EZ Driver Installation
Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically that you can download and install with just a few clicks. This feature will be ready in Windows 11 build 22H2 and requires network connectivity to automatically launch.

One Glance
EZ Debug LED
Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.

EZ DIGI-Debug LED
Displays the error code for troubleshooting and also functions as temperature monitor.

One Click
EZ Optimization
A host of features inject artificial intelligence into key aspects of your computing experience to make smarter, real-time optimizations. The MSI Center offers a clean, minimal interface to customize and manage your PC settings. The AI Engine, for example, automatically adjusts settings based on the applications you're using, ensuring seamless performance.
MSI PRO Z890-A WIFI - Play-Asia.com
Power Solution
Power Design - 16+1+1+1 Duet Rail Power System
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 16+1+1+1 digital power phases. Combining dual power connectors and 90A Smart Power Stage, the PRO Z890-A WIFI is ready for the challenge of high-end processors.

PCB Design
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

More for Performance
1-Second Overclocking
MSI Game Boost enables one second overclocking, giving you the performance boost you need to get more fps.

Load-Line Calibration
What you see is what you get. LLC makes sure your CPU voltage remains 100% stable under any load. This greatly improves stability when demanding more CPU performance.

Overvoltage Protection
Prevents potential short circuit damage to the CPU and other critical components.

Memory
DDR5 Memory Support with High Performance
A huge step of DDR performance enhancement is the latest DDR5 memory. Combined with the dedicated SMT welding process and MSI Memory Boost technology, the PRO Z890-A WIFI is ready to deliver fast memory performance.

Protection
Transient Voltage Suppressors (TVS)
Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All MSI motherboards are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.

Frozr Guard
- Cooling Overview
Frozr Sync
- System Cooling
Frozr Control
- Cooling Wizard

Combo Fan
The MSI Combo Fan Header is a versatile component, functioning as both a pump and or fan header. The header will automatically detect whether it is either pump or PWM/DC fan, with its distinctive gray color ensuring easy identification.

Networking
Flawless Connection
A high bandwidth and low latency network solution provides incredible data transfer speeds for demanding users.

AI LAN Manager
MSI AI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

Storage
Fast and Future-Ready Storage
MSI PRO series motherboards support all the latest storage standards, which allows users to connect almost any ultra-fast storage device. Start games faster, load levels faster, and have a real advantage over your enemies.

Expansion
Lightning PCIe 5.0

PCIe Supplemental Power
The exclusive Supplemental PCIe Power connector provides dedicated power for the high-power demands of GPUs used in AI computing and gaming, ensuring stable, efficient, and sustained performance.

Mystic Light
Glow Your PC
Splash on some color and vibrant RGB lighting effects using Mystic Light utility of MSI Center, which has million colors and fancy LED effects. Enjoy the full control and creativity of your PC's lighting with one software.

Software
MSI Center
MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboard features and unleash endless possibilities.

AIDA64
MSI motherboards provide a 60-day free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics, and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.

​​​​​​​Norton 360
With multiple layers of protection for your devices, online privacy features including MSI's Secure VPN, plus Dark Web Monitoring, all in a single solution. With MSI motherboards, you can enjoy a 60-day free trial of Norton 360 Deluxe.
